What sizes are available for OEM Nitinol compression springs?
2024-11-22 03:15:40

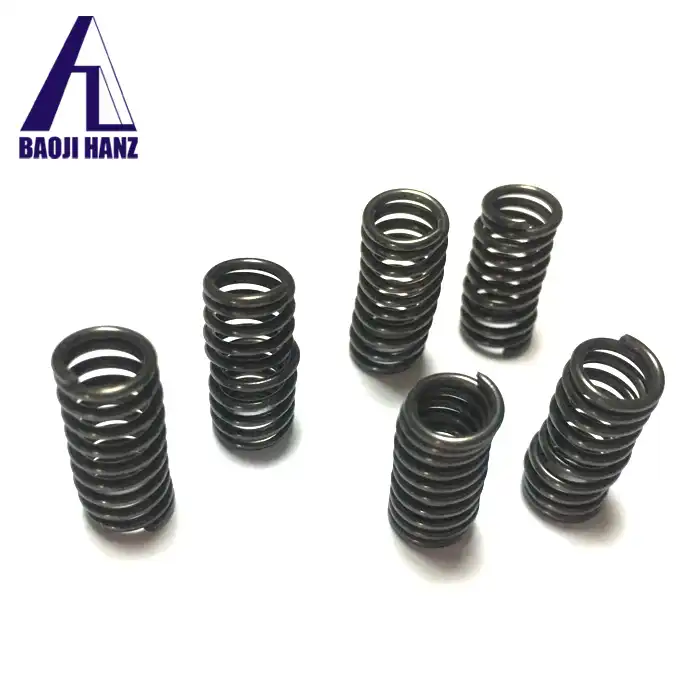

OEM Nitinol compression springs are a marvel of modern engineering, offering unique properties that make them ideal for various applications. These springs, made from the shape memory alloy Nitinol, combine superelasticity with temperature-responsive behavior. When it comes to sizes, OEM Nitinol compression springs are available in a wide range to suit diverse needs. This article delves into the various dimensions, customization options, and factors influencing size selection for these innovative springs. Whether you're in the medical, automotive, or aerospace industry, understanding the size possibilities of Nitinol compression springs can help you make informed decisions for your projects.
Standard Sizes of OEM Nitinol Compression Springs
Wire Diameter Range
The wire diameter of OEM Nitinol compression springs typically ranges from ultra-fine 0.1 mm to robust 5 mm. Micro-springs used in delicate medical devices often utilize wire diameters on the lower end of this spectrum, while larger industrial applications may require thicker wires to accommodate higher load capacities and durability. The choice of wire diameter significantly impacts the spring's strength, flexibility, and overall performance characteristics. Thicker wires are generally used for more demanding applications, where greater force or resistance to fatigue is necessary, while finer wires allow for precise control in applications requiring fine, lightweight springs.
Spring Coil Diameter Options
Coil diameters for OEM Nitinol compression springs can vary from minuscule 0.5 mm to expansive 50 mm or more. The coil diameter plays a crucial role in determining the spring's force-deflection characteristics. Smaller coil diameters generally result in stiffer springs, offering higher force resistance for compact spaces, while larger coils provide more compliance, allowing for greater deflection and softer responses. Manufacturers often provide a range of standard coil diameters to accommodate different load requirements, space constraints, and desired spring behaviors. The optimal coil diameter is selected based on the balance between the mechanical properties required for a specific application and the available design space.
Spring Length Variations
The length of OEM Nitinol compression springs can be tailored to specific applications, ranging from compact 5 mm springs to extended versions exceeding 100 mm. Free length, solid height, and working length are key parameters that engineers consider when specifying spring dimensions. The ability to produce springs in various lengths allows for precise control over the spring's force, travel distance, and overall functionality, which are crucial factors in many high-precision applications. Longer springs may be needed for applications that require more travel or deflection, while shorter versions are ideal for compact devices where space is limited but performance remains critical.
Customization Options for OEM Nitinol Compression Springs
Tailored End Configurations
OEM manufacturers offer diverse end configurations for Nitinol compression springs to suit specific mounting and load distribution requirements. Options include closed and ground ends for stable seating, open ends for easy installation, and custom-shaped ends for specialized applications, such as those requiring minimal space or unique attachment methods. These tailored end configurations can significantly influence the spring's performance, load distribution, and integration within complex assemblies, ensuring the spring functions optimally in a variety of environments and mechanical systems.
Variable Pitch and Coil Count
Customization extends to the pitch and coil count of OEM Nitinol compression springs. Variable pitch designs allow for non-linear force characteristics, which is particularly beneficial in applications requiring progressive resistance, such as shock absorption or vibration damping. Coil count adjustments enable fine-tuning of the spring's stiffness and travel, allowing for greater precision in load handling. This level of customization permits engineers to optimize spring performance for unique loading scenarios, space constraints, and specific force requirements, ensuring the spring meets the demands of the application.
Surface Treatments and Coatings
While not directly related to size, surface treatments and coatings can affect the dimensional tolerances and performance of OEM Nitinol compression springs. Options such as electropolishing for improved corrosion resistance or specialized coatings for enhanced biocompatibility can be applied without significantly altering the spring's core dimensions. These treatments allow for size-preserving enhancements that improve durability, performance, and compliance with specific environmental or regulatory requirements, making the spring more suitable for demanding industries such as medical devices or aerospace applications.
Factors Influencing Size Selection for OEM Nitinol Compression Springs
Application-Specific Requirements
The intended application is a critical factor in determining the appropriate size for OEM Nitinol compression springs. For example, in medical devices, where space is limited and precision is paramount, ultra-small springs are often required to accommodate minimally invasive procedures or delicate instruments. On the other hand, aerospace applications may require larger, high-strength springs designed to endure extreme temperatures, pressures, and mechanical stresses. Understanding the operational environment, load requirements, and space constraints helps engineers select the optimal spring dimensions to ensure the spring performs reliably within the given application while meeting performance, safety, and regulatory standards.
Material Properties and Heat Treatment
The unique properties of Nitinol—specifically its shape memory effect and superelasticity—play a crucial role in determining the size and functionality of compression springs. The material can "remember" a predetermined shape when heated or deformed, making it ideal for applications requiring precise movement or actuation. Heat treatment processes can significantly influence these properties, altering the spring's transition temperatures, stiffness, and resilience. Engineers must account for how Nitinol's behavior changes with size to ensure consistent performance, particularly in applications where the spring may need to operate in varying temperature ranges or under specific mechanical stresses. Proper heat treatment ensures that the spring exhibits the desired superelastic or shape memory behavior at the required sizes.
Manufacturing Limitations and Tolerances
Manufacturing capabilities and tolerances are essential considerations when selecting the size of OEM Nitinol compression springs. Extremely fine wire diameters or very large coil diameters may present significant production challenges, such as difficulty in achieving consistent mechanical properties or increased manufacturing costs. Additionally, tighter tolerances often require more precise equipment and quality control, which can extend lead times and increase costs. Engineers must balance the spring’s performance requirements with the practicalities of manufacturing, selecting dimensions that are feasible to produce within the required tolerances while maintaining the desired strength, durability, and function. Understanding these limitations helps avoid unexpected issues during production and ensures the spring meets the necessary specifications for the final product.
Conclusion
OEM Nitinol compression springs offer a vast array of size options, from microscopic medical components to robust industrial applications. By understanding the standard sizes, customization possibilities, and factors influencing size selection, engineers and designers can leverage the unique properties of Nitinol to create innovative solutions across various industries. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
