How are nitinol strips manufactured?

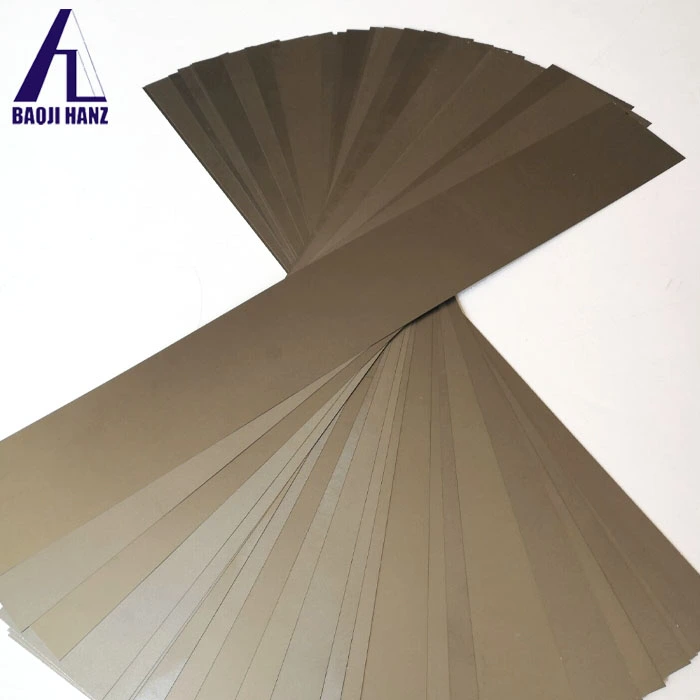

Raw Material Preparation and Alloy Composition

Selecting High-Purity Nickel and Titanium

The manufacturing of shape memory nitinol strips begins with an essential step: the meticulous selection of raw materials. High-purity nickel and titanium are critical for achieving the specific properties necessary for the final product. These elements are typically sourced from reputable suppliers known for their stringent quality control processes, ensuring that the purity levels meet the stringent requirements for nitinol production. The quality of these base materials has a direct influence on the performance, reliability, and overall effectiveness of the resulting nitinol strips, as any impurities could adversely affect the material's shape memory and superelastic characteristics.

Precise Alloying Process

Once the raw materials are obtained, they are subjected to a highly controlled alloying process. The composition of nitinol is particularly crucial, usually comprising approximately 55-56% nickel and 44-45% titanium by weight. This precise ratio is fundamental to unlocking the shape memory and superelastic properties that make nitinol strips highly sought after in various applications. The alloying process typically occurs in vacuum induction melting furnaces, which provide a controlled environment to ensure accuracy in composition while minimizing the risk of contamination. This careful approach to alloying helps produce a material with the desired mechanical and thermal properties.

Homogenization and Ingot Formation

Following the initial melting and alloying stages, the material undergoes a critical homogenization process. This step is vital to ensure that the nickel and titanium are evenly distributed throughout the alloy, thereby preventing any segregation and enhancing the overall quality of the final product. Uniform distribution of the elements is key to maintaining consistent properties throughout the material. After homogenization, the alloy is cast into ingots, which serve as the foundational starting point for further processing into shape memory nitinol strips. These ingots are then carefully processed to achieve the desired dimensions and properties, ultimately resulting in high-performance nitinol products ready for diverse applications.

Thermomechanical Processing Techniques

Hot Working and Forging

The nitinol ingots are subjected to hot working processes, such as forging or extrusion, to break down the as-cast structure and improve the material's mechanical properties. This step is crucial in developing the microstructure that will ultimately contribute to the shape memory effect. Hot working is typically performed at temperatures above the recrystallization temperature of nitinol, allowing for significant deformation without compromising the material's integrity.

Cold Working and Intermediate Annealing

Following hot working, the nitinol undergoes a series of cold working steps, interspersed with intermediate annealing treatments. Cold working, which may include rolling or drawing, helps to refine the grain structure and impart the desired mechanical properties to the shape memory nitinol strips. The intermediate annealing treatments relieve internal stresses and maintain the material's workability throughout the process.

Final Heat Treatment

The final heat treatment is a critical step in the manufacturing of shape memory nitinol strips. This process, often referred to as "shape setting," involves heating the material to a specific temperature and holding it for a predetermined time. The heat treatment parameters are carefully controlled to achieve the desired transformation temperatures and optimize the shape memory effect. This step effectively "programs" the nitinol strips to remember their intended shape.

Precision Shaping and Surface Finishing

Strip Formation Techniques

To create the final shape memory nitinol strips, various formation techniques may be employed. These can include precision rolling, which allows for tight control over the strip thickness and width. Alternatively, wire drawing followed by flattening may be used to produce strips with specific dimensions. The choice of technique depends on the desired characteristics of the final product and the intended application of the nitinol strips.

Surface Treatment and Polishing

Once the nitinol strips have been formed, they undergo surface treatment and polishing processes. These steps are crucial for enhancing the material's corrosion resistance and biocompatibility, particularly for medical applications. Surface treatments may include electropolishing or passivation, which create a protective oxide layer on the strip's surface. Polishing techniques are employed to achieve the desired surface finish, which can range from matte to mirror-like, depending on the specific requirements of the end-use application.

Quality Control and Testing

Throughout the manufacturing process, rigorous quality control measures are implemented to ensure the consistency and reliability of the shape memory nitinol strips. This includes dimensional checks, composition analysis, and mechanical testing to verify the material's properties. Advanced techniques such as differential scanning calorimetry (DSC) may be used to characterize the transformation temperatures and behavior of the nitinol strips. These quality assurance steps are essential for maintaining the high standards required for critical applications in industries such as medical devices and aerospace.

Conclusion

The manufacture of shape memory nitinol strips is a sophisticated process that combines metallurgical expertise with advanced processing techniques. From careful material selection to precise thermomechanical treatments, each step plays a vital role in creating these remarkable materials. As research continues to advance, we can expect further refinements in nitinol strip production, opening up new possibilities for innovative applications across various industries. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
