How is a shape memory nitinol sheet used in medical devices?

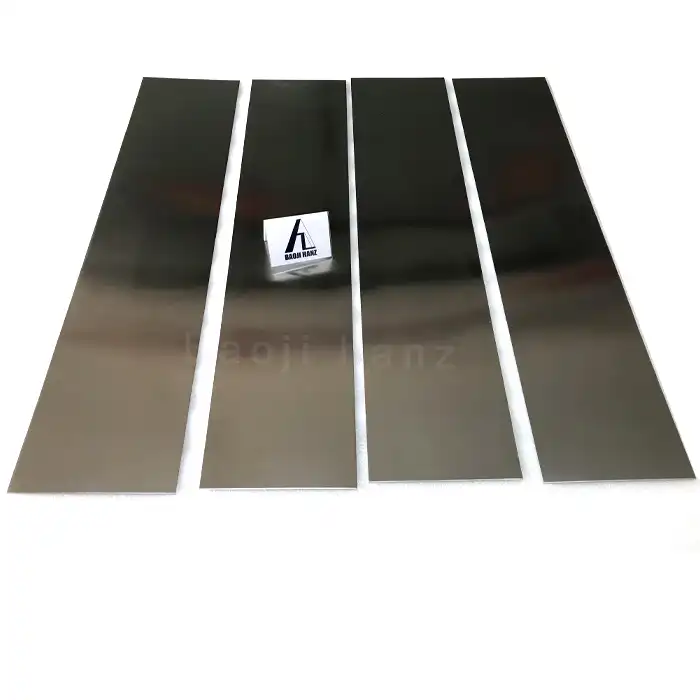

Properties and Characteristics of Shape Memory Nitinol Sheets

Superelasticity and Shape Memory Effect

Shape memory nitinol sheets exhibit two extraordinary properties that make them invaluable in medical device applications: superelasticity and the shape memory effect. Superelasticity allows the material to undergo large deformations without permanent damage, returning to its original shape upon removal of stress. This property is particularly useful in devices that require flexibility and resilience, such as guidewires and stents.The shape memory effect, on the other hand, enables nitinol sheets to recover their pre-programmed shape when heated above a specific transition temperature. This phenomenon occurs due to a reversible phase transformation between two crystal structures: austenite and martensite. Medical devices leveraging this property can be designed to deploy or activate once they reach body temperature, enabling minimally invasive procedures and self-expanding implants.

Biocompatibility and Corrosion Resistance

One of the key advantages of shape memory nitinol sheets in medical applications is their excellent biocompatibility. The material forms a stable titanium oxide layer on its surface, which prevents adverse reactions with bodily fluids and tissues. This protective layer also contributes to nitinol's remarkable corrosion resistance, ensuring the longevity and safety of medical devices implanted in the human body.The biocompatibility of nitinol has been extensively studied and documented, with numerous clinical trials demonstrating its safety for long-term implantation. This property has paved the way for the development of various implantable devices, including cardiovascular stents, orthopedic implants, and dental appliances.

Thermal and Mechanical Properties

Shape memory nitinol sheets possess a unique combination of thermal and mechanical properties that set them apart from conventional materials used in medical devices. The material exhibits a low elastic modulus, similar to that of bone, which reduces stress shielding in orthopedic implants and promotes better integration with surrounding tissues.The thermal properties of nitinol sheets are equally impressive, with a transformation temperature that can be tailored to suit specific medical applications. This allows for the creation of devices that respond to temperature changes within the human body, enabling controlled deployment or activation. Additionally, the material's high fatigue resistance and wear resistance contribute to the durability and longevity of medical devices, particularly those subjected to cyclic loading or constant motion.

Manufacturing and Processing of Shape Memory Nitinol Sheets

Melting and Casting Techniques

The production of shape memory nitinol sheets begins with the precise melting and alloying of nickel and titanium. Advanced melting techniques, such as vacuum induction melting (VIM) or vacuum arc remelting (VAR), are employed to ensure the purity and homogeneity of the alloy. These processes are critical in maintaining the desired composition and properties of the nitinol material.Once melted, the alloy is cast into ingots using sophisticated casting methods. Continuous casting or investment casting techniques may be utilized, depending on the specific requirements of the final product. The casting process is carefully controlled to minimize segregation and ensure uniform composition throughout the ingot.

Hot Working and Cold Rolling

After casting, the nitinol ingots undergo a series of hot working processes to break down the as-cast structure and improve the material's properties. Hot forging or extrusion is typically employed to create intermediate forms, such as bars or rods. These processes help refine the grain structure and enhance the mechanical properties of the alloy.The hot-worked material is then subjected to cold rolling to produce thin sheets of nitinol. This process involves passing the material through a series of rollers at room temperature, gradually reducing its thickness. Cold rolling not only achieves the desired sheet dimensions but also introduces work hardening, which can be advantageous for certain applications.

Heat Treatment and Shape Setting

Heat treatment is a crucial step in the manufacturing of shape memory nitinol sheets, as it determines the final properties and behavior of the material. The process typically involves annealing at high temperatures, followed by rapid cooling. This heat treatment establishes the austenite crystal structure and sets the transformation temperature of the alloy.Shape setting is another essential process in the production of nitinol sheets for medical devices. During this step, the material is constrained in the desired final shape and subjected to a specific heat treatment cycle. This process programs the shape memory effect, allowing the sheet to return to its pre-set configuration when heated above its transformation temperature. The precise control of temperature and time during shape setting is critical in achieving the desired performance characteristics for medical applications.

Applications of Shape Memory Nitinol Sheets in Medical Devices

Cardiovascular Devices

Shape memory nitinol sheets have found extensive use in the development of innovative cardiovascular devices. One of the most prominent applications is in the manufacture of self-expanding stents. These stents are designed to be compressed and inserted into a catheter for minimally invasive deployment. Once released at the target site, the nitinol stent expands to its pre-programmed shape, providing support to the vessel wall and maintaining patency.Another cardiovascular application of nitinol sheets is in the creation of atrial septal defect (ASD) closure devices. These implants utilize the superelastic properties of nitinol to create a collapsible structure that can be delivered through a catheter. Upon deployment, the device expands to seal the defect in the heart, eliminating the need for open-heart surgery.

Orthopedic Implants

The unique properties of shape memory nitinol sheets have led to their adoption in various orthopedic applications. One notable use is in the development of dynamic compression plates for fracture fixation. These plates leverage the superelastic behavior of nitinol to provide continuous compression at the fracture site, promoting faster and more effective healing.Nitinol sheets are also employed in the creation of spinal implants, such as artificial discs and vertebral spacers. The material's ability to withstand cyclic loading and its biocompatibility make it an ideal choice for these demanding applications. Additionally, the shape memory effect can be utilized to design implants that change shape or expand after insertion, allowing for minimally invasive surgical techniques.

Minimally Invasive Surgical Tools

The superelastic and shape memory properties of nitinol sheets have revolutionized the design of minimally invasive surgical tools. Endoscopic instruments, such as graspers and biopsy forceps, benefit from the material's flexibility and kink resistance. These tools can navigate through tortuous anatomical pathways while maintaining their functionality.Nitinol sheets are also used in the fabrication of deployable surgical meshes for hernia repair and other soft tissue reconstructions. These meshes can be compressed into a small delivery device and expand to their full size once deployed in the body, simplifying the surgical procedure and reducing patient trauma.

Conclusion

Shape memory nitinol sheets have emerged as a game-changing material in the medical device industry. Their unique properties, including superelasticity and shape memory effect, have enabled the development of innovative devices that improve patient outcomes and expand the possibilities of minimally invasive procedures. As research continues and manufacturing techniques advance, we can expect to see even more groundbreaking applications of this remarkable material in the future of healthcare. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
