titanium nickel sheet

Titanium nickel sheet medical superelastic NiTi memory alloy plate shape memory Ni-Ti sheet

Titanium nickel sheet introduction:

Nickel titanium memory alloy has mechanical properties and corrosion resistance, as well as excellent biocompatibility, and special shape memory function enables continuous self-compression function of orthopedic internal fixation devices, which can greatly shorten the healing cycle of patients. Its special performance is widely used in medical, glasses, magic props, aerospace, automotive and new industries.

Titanium nickel sheet features:

Nickel titanium memory alloy not only has special shape memory function, but also has the characteristics of wear resistance, corrosion resistance, biocompatibility, high damping, fatigue resistance and super elasticity.

Brand: NiTi

Technical standards: GB 24627-2009, ASTM F2063-2018

Product specifications:, plate/slab, support special specifications customization.

Delivery condition: Annealed/cold rolled

BaojiHanz Alloy "-- focus on the production of memory alloy materials, to provide customers with alloy solutions

Main properties of nitinol shape memory alloy:

Characteristic unit value of alloy
Density g/cm3 6.4-6.5
Melting point 1310 °C
Elastic modulus martensite GPa 28-41
Austenite GPa 83
Hardness martensite HV 180-200
Austenite HV 200-350
Tensile strength Annealed MPa 850
Processing state MPa 1900
Yield strength Martensite MPa 70-140
Austenite MPa 195-690
Elongation annealing state % 25-50
Processing state % 5-10
Phase transition temperature ° C-100-100
Recovery strain max % 8
Return stress max MPa 600

Chemical composition of titanium  nickel sheet:

Surface state of titanium nickel sheet:

- Polished: A smooth and shiny surface, which is often used for aesthetic or applications requiring low friction.
- Sandblasted: The surface has a rough texture created by blasting it with fine particles. It can provide better adhesion for coatings or improve grip.
- Oxidized: There is an oxide layer on the surface. This state can enhance corrosion resistance in some environments.

Titanium nickel sheet Application:

- In medical devices, it is used to make catheters. Shape memory features help in proper location and function.
- In the aerospace sector, it can be used in temperature-sensitive tubing systems. The shape can be adjusted according to temperature changes for efficient fluid transfer.
- In the automotive industry, it is used in some engine cooling systems. The corrosion resistance and flexibility of the titanium-nickel tubes facilitate the circulation of the coolant.

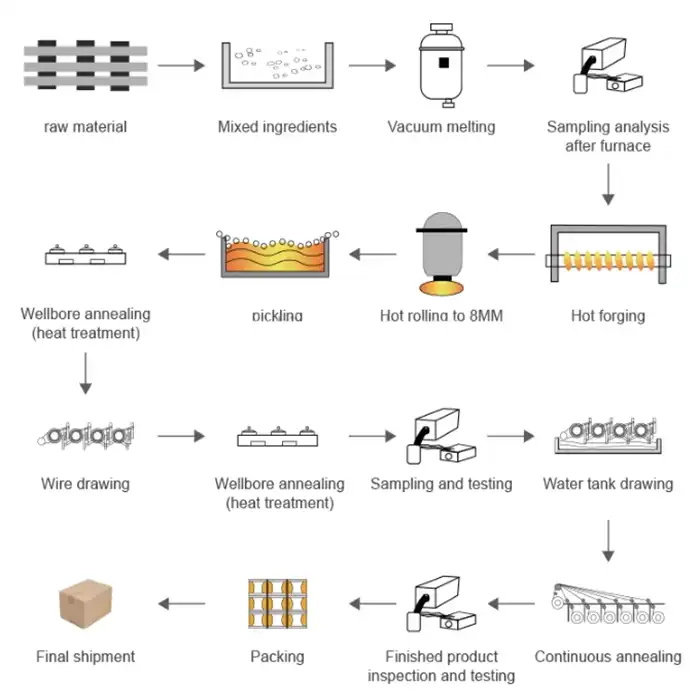

Production process of titanium nickel sheet:

Quality assurance:

-- Put forward strict quality control measures to ensure the highest quality of titanium nickel sheet.
- Reference to international quality standards.

Logistics transport mode:

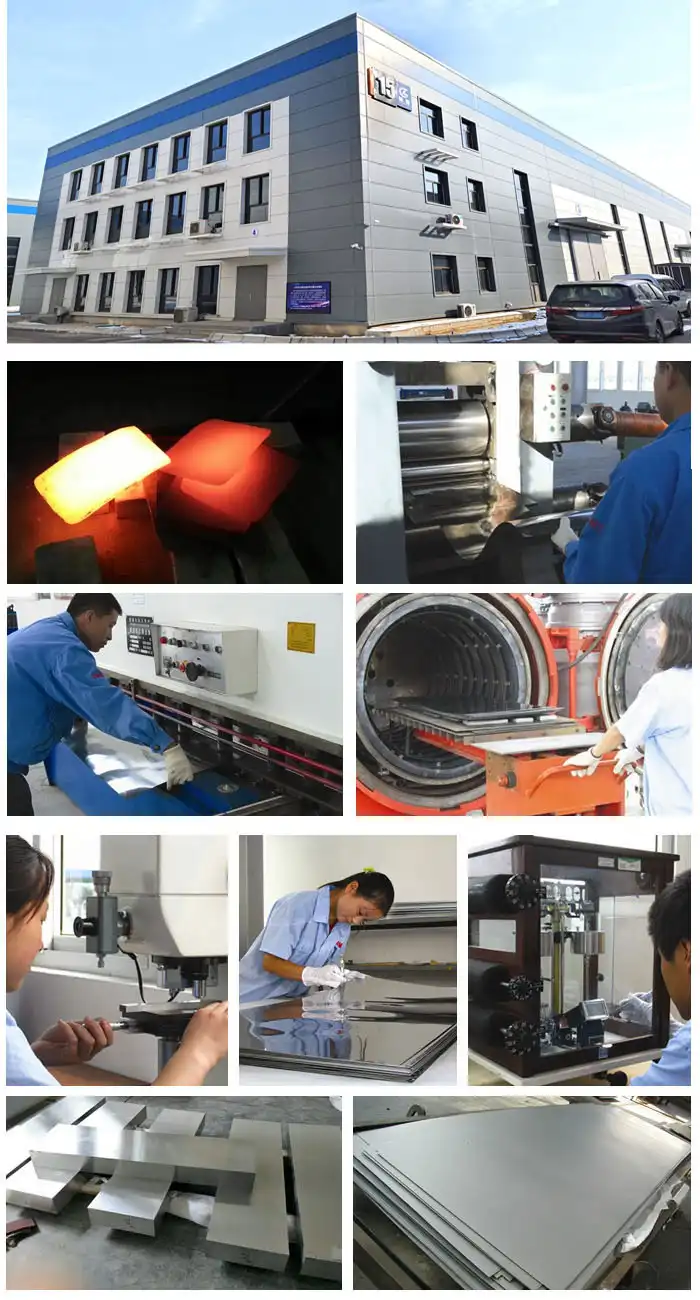

Company and equipment:

FAQ:

Q: What are the main properties of nickel-titanium plates?
A: Nickel-titanium plates have shape memory and superelasticity. They are also corrosion resistant and biocompatible.

Q: What are the applications of nickel-titanium plates?
A: They are used in medical devices such as stents and orthodontic wires. It also has unique properties in aerospace and mechanical engineering.

Q: How to guarantee the quality of nickel-titanium plate?
A: Pass strict quality control procedures, including material testing and dimensional inspection.

Q: What is the price range of nickel-titanium plates?
A: The price depends on size, thickness and quality. Generally higher than ordinary metal plate.

Q: Can nickel-titanium plates be customized?
A: Yes, the manufacturer can usually customize it according to specific requirements.
