How is shape memory nitinol foil manufactured?

Shape memory nitinol foil is a remarkable material that has revolutionized various industries, from aerospace to medical devices. This innovative alloy possesses unique properties, including the ability to return to its original shape after deformation when exposed to specific temperatures. Understanding the intricate manufacturing process of shape memory nitinol foil is crucial for those seeking to harness its exceptional capabilities. In this comprehensive guide, we'll delve into the fascinating world of nitinol production, exploring the steps involved in creating this versatile material and shedding light on the advanced techniques employed by industry leaders like Baoji Hanz Metal Material Co., Ltd.

Raw Material Selection and Preparation

Sourcing High-Purity Nickel and Titanium

Shape memory nitinol foil's production begins with the careful selection of raw materials, of which high-purity nickel and titanium are crucial components. To ensure that the final product meets stringent quality standards, manufacturers like Baoji Hanz Metal Material Co., Ltd. place an emphasis on sourcing nickel and titanium of the highest possible grade. In order to accomplish this, these raw materials go through stringent testing procedures to confirm their chemical composition and purity, both of which are essential for the performance of the alloy. The foundation for producing dependable nitinol foils that can be successfully utilized in a variety of applications, including medical devices, aerospace components, and smart technologies, is laid by ensuring quality at this initial stage.

Precise Alloying Process

The nitinol alloy is made by carefully combining the raw materials in precise proportions once they are obtained. The final product's shape-memory properties are heavily dependent on the precise ratio of nickel to titanium. As this blend maximizes the unique properties of the alloy, it is typically made up of approximately 55% nickel and 45% titanium by weight. However, even the tiniest variations in this ratio can result in significant variations in the Shape memory nitinol foil's transformation temperatures and mechanical properties. The significance of precise formulation in achieving the desired performance for various applications, such as actuators and medical devices, is highlighted by this sensitivity to composition.

Melting and Homogenization

The alloying process begins with melting the nickel and titanium in a vacuum induction furnace, a critical step that ensures a homogeneous mixture while preventing contamination from external elements. This controlled environment allows for precise temperature management, promoting optimal alloy formation. Once melted, the molten alloy is carefully cooled to form ingots, which serve as the foundational material for further processing. These ingots then undergo additional homogenization treatments, aimed at achieving a uniform distribution of elements throughout the material. This step is essential for ensuring consistent shape memory behavior and mechanical properties, ultimately enhancing the performance and reliability of the nitinol foil in various applications.

Foil Formation and Processing

Hot Working and Cold Rolling

The nitinol ingots are subjected to a series of hot working processes, including forging and rolling, to break down the cast structure and improve the material's ductility. This step is crucial in preparing the alloy for subsequent cold rolling operations. The hot-worked material is then cooled and subjected to multiple passes of cold rolling to achieve the desired foil thickness. Cold rolling not only reduces the material's thickness but also introduces work hardening, which influences the shape memory properties.

Intermediate Annealing

Throughout the cold rolling process, intermediate annealing steps are performed to relieve internal stresses and maintain the material's workability. These annealing treatments are carefully controlled to avoid altering the alloy's composition or introducing unwanted phases. The temperature and duration of annealing are optimized to achieve the desired balance between workability and final shape memory characteristics.

Precision Thickness Control

Achieving the precise thickness of shape memory nitinol foil requires advanced rolling equipment and meticulous process control. Manufacturers like Baoji Hanz Metal Material Co., Ltd. employ sophisticated rolling mills equipped with high-precision sensors and automated control systems. These systems ensure that the foil thickness remains consistent throughout the production run, often achieving tolerances as tight as ±0.0005 mm.

Shape Memory Property Induction and Finishing

Heat Treatment for Shape Memory Effect

The shape memory effect in nitinol foil is induced through a carefully controlled heat treatment process. This crucial step involves heating the foil to a specific temperature, typically between 450°C and 550°C, for a predetermined duration. The exact parameters of this heat treatment are tailored to achieve the desired transformation temperatures and shape memory characteristics. Advanced furnaces with precise temperature control and inert atmospheres are utilized to prevent oxidation during this critical stage.

Surface Treatment and Passivation

After heat treatment, the Shape memory nitinol foil undergoes surface treatment to enhance its corrosion resistance and biocompatibility. This often involves chemical etching to remove surface impurities and create a uniform oxide layer. A passivation process may also be employed to further improve the foil's resistance to corrosion. These surface treatments are particularly important for applications in medical devices and other corrosive environments.

Quality Control and Testing

The final stage of shape memory nitinol foil manufacturing involves rigorous quality control measures. Each batch of foil is subjected to a battery of tests to verify its mechanical properties, transformation temperatures, and shape memory behavior. Advanced testing equipment, such as differential scanning calorimeters and tensile testing machines, are used to characterize the material's performance. Manufacturers like Baoji Hanz Metal Material Co., Ltd. maintain strict quality assurance protocols to ensure that every piece of nitinol foil meets or exceeds industry standards.

Conclusion

The manufacture of shape memory nitinol foil is a complex process that requires expertise, precision, and advanced technology. From raw material selection to final quality control, each step plays a crucial role in producing this remarkable material. As industry leaders continue to innovate and refine their techniques, the potential applications for shape memory nitinol foil continue to expand, promising exciting developments across various sectors. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.





Properties and Characteristics of Shape Memory Nitinol Foil

Superelasticity and Shape Memory Effect

Shape memory nitinol foil exhibits two extraordinary properties that set it apart from conventional materials: superelasticity and the shape memory effect. Superelasticity allows the foil to undergo substantial deformation without permanent damage, returning to its original shape upon unloading. This property is particularly useful in applications requiring flexibility and resilience. The shape memory effect enables the foil to "remember" and return to a predetermined shape when heated above its transformation temperature. This unique characteristic opens up a world of possibilities for creating smart, responsive structures and devices.

Temperature-Dependent Behavior

The behavior of the Shape memory nitinol foil is intricately linked to temperature. At lower temperatures, the material exists in a martensite phase, which is easily deformable. As the temperature increases, it transitions to the austenite phase, triggering the shape memory effect. This temperature-dependent behavior allows for precise control over the material's properties, making it ideal for applications in thermal management and temperature-sensitive devices. The ability to fine-tune the transformation temperature through composition adjustments further enhances the versatility of the product.

Mechanical and Physical Properties

Shape memory nitinol foil boasts an impressive array of mechanical and physical properties. Its high strength-to-weight ratio makes it an excellent choice for lightweight yet durable components. The material's corrosion resistance surpasses that of many conventional alloys, ensuring longevity in harsh environments. Additionally, the ptoduct exhibits good biocompatibility, making it suitable for medical implants and devices. Its electrical and thermal conductivity properties also contribute to its utility in various applications, from sensors to actuators.

Manufacturing Processes of Shape Memory Nitinol Foil

Alloy Composition and Melting

The production of shape memory nitinol foil begins with careful control of the alloy composition. Precise amounts of nickel and titanium are combined to achieve the desired properties. The melting process typically involves vacuum induction melting or vacuum arc remelting to ensure high purity and homogeneity of the alloy. These advanced melting techniques are crucial for maintaining the consistency and quality of the final product, as even small variations in composition can significantly affect the foil's performance.

Casting and Hot Working

After melting, the nitinol alloy is cast into ingots or billets. These are then subjected to hot working processes such as forging or hot rolling to break down the as-cast structure and improve the material's properties. Hot working helps to refine the grain structure and enhance the mechanical properties of the alloy. The temperature and deformation parameters during this stage are carefully controlled to ensure optimal performance of the product.

Cold Rolling and Heat Treatment

The hot-worked material undergoes cold rolling to achieve the desired foil thickness. This process involves multiple passes through precision rollers, gradually reducing the thickness while increasing the length. Cold rolling also introduces work hardening, which affects the material's properties. Subsequent heat treatment is crucial to impart the shape memory and superelastic properties to the foil. This heat treatment, often referred to as "shape setting," involves heating the foil to a specific temperature and holding it in the desired shape before cooling. The precise temperature and duration of this process are tailored to achieve the optimal shape memory behavior for the intended application.

Applications of Shape Memory Nitinol Foil

Medical Devices and Implants

Shape memory nitinol foil has found extensive use in the medical field, revolutionizing the design of minimally invasive devices and implants. In cardiovascular applications, nitinol foil is used to create self-expanding stents that can be compressed for insertion and then expand to their predetermined shape once in place. This property allows for less invasive procedures and reduced trauma to patients. Orthodontic archwires made from nitinol foil provide constant, gentle force for tooth alignment, improving comfort and reducing treatment time. In neurosurgery, shape memory nitinol foil is utilized in aneurysm clips and guidewires, offering enhanced maneuverability and precision during delicate procedures.

Aerospace and Automotive Industries

The unique properties of the Shape memory nitinol foil make it an invaluable material in aerospace and automotive applications. In aircraft, nitinol foil is used in variable geometry chevrons for jet engines, which can adapt their shape to optimize performance and reduce noise during different flight phases. The automotive industry employs nitinol foil in actuators for climate control systems and in adaptive damping systems for improved ride comfort. The material's high fatigue resistance and ability to withstand extreme temperatures make it ideal for these demanding applications. Additionally, shape memory nitinol foil is explored for use in morphing aircraft structures and self-healing automotive components, pushing the boundaries of what's possible in vehicle design and performance.

Consumer Electronics and Robotics

Shape memory nitinol foil has made significant inroads into consumer electronics and robotics, enabling the creation of more compact and responsive devices. In smartphones and tablets, nitinol foil is used in haptic feedback mechanisms, providing tactile sensations that enhance user experience. The material's superelasticity is exploited in flexible antennas and connectors, allowing for more durable and bendable electronic devices. In robotics, shape memory nitinol foil actuators offer a lightweight alternative to traditional motors, enabling the development of more agile and energy-efficient robots. Soft robotics, in particular, benefits from the material's ability to change shape in response to electrical stimuli, opening up new possibilities for adaptive and biomimetic designs.

Conclusion

Shape memory nitinol foil has emerged as a versatile and innovative material with a wide range of applications across various industries. Its unique properties of shape memory and superelasticity have enabled the development of groundbreaking technologies in medicine, aerospace, automotive, and consumer electronics. As research continues to uncover new possibilities for this remarkable material, we can expect to see even more exciting applications in the future, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.



Other related product catalogues

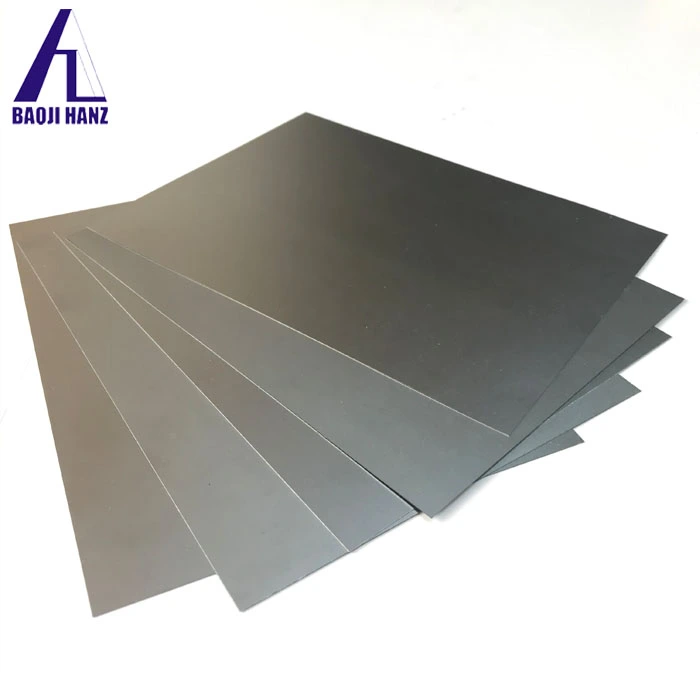

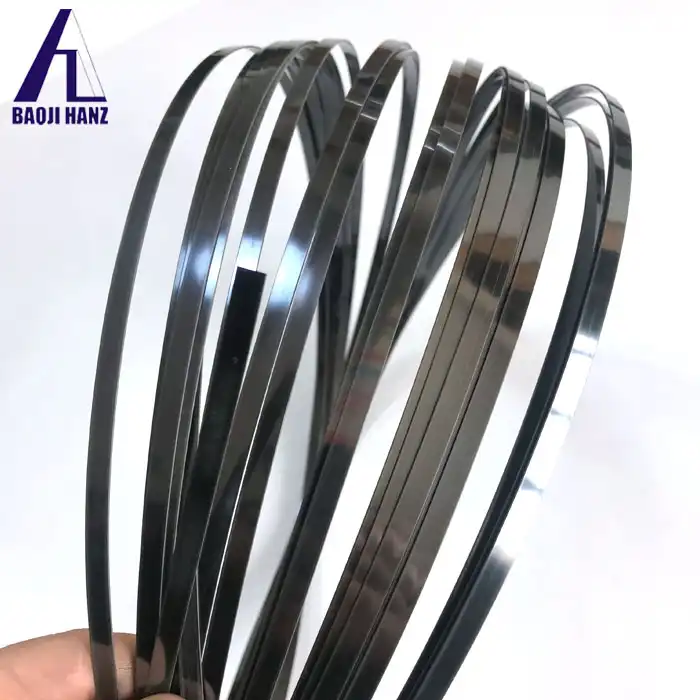

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge University Press.

2. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical uses of nitinol. Materials Science Forum, 327, 63-70.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.

5. Miyazaki, S., Fu, Y. Q., & Huang, W. M. (Eds.). (2009). Thin film shape memory alloys: fundamentals and device applications. Cambridge University Press.

6. Frick, C. P., Ortega, A. M., Tyber, J., Maksound, A. E. M., Maier, H. J., Liu, Y., & Gall, K. (2005). Thermal processing of polycrystalline NiTi shape memory alloys. Materials Science and Engineering: A, 405(1-2), 34-49.
