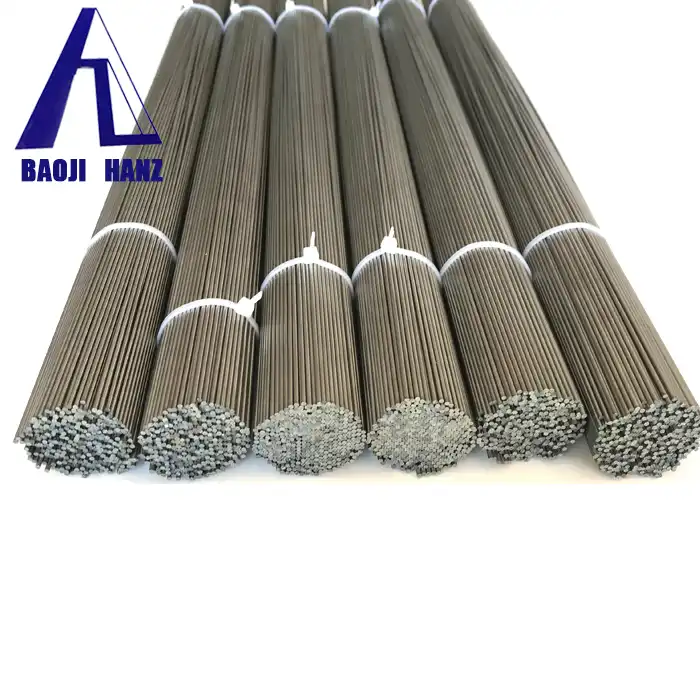

How strong is a nitinol wire?

The strength of nitinol wire can vary depending on its composition and processing, but generally, it exhibits high strength relative to its size. Nitinol's strength is often comparable to stainless steel wires of similar dimensions. Its unique property lies in its superelasticity, which allows it to undergo significant deformation and return to its original shape without permanent damage. This characteristic makes nitinol wire suitable for applications requiring resilience and controlled movement, such as in medical devices, where it is used for minimally invasive surgery tools and orthodontic wires. Nitinol's strength and flexibility also contribute to its use in robotics, aerospace, and various high-tech industries where precise actuation and durability are essential.

How Strong is a Nitinol Wire?

Nitinol wire's strength is one of its most defining characteristics. This alloy exhibits both high strength and elasticity, which are essential for its use in various demanding applications. The strength of nitinol wire can be attributed to its unique properties, such as superelasticity and shape memory effect.

Superelasticity

Superelasticity is the ability of nitinol to undergo significant deformation and then return to its original shape upon unloading. This property allows nitinol wire to withstand considerable strain without permanent deformation. When a nitinol wire is stretched or bent, it can revert to its original shape when the stress is removed, making it incredibly resilient. This superelastic behavior is primarily due to a phase transformation between the austenite and martensite phases of the alloy.

Shape Memory Effect

The shape memory effect in nitinol is another critical factor contributing to its strength. Nitinol can "remember" its original shape and return to it when heated to a specific temperature. This property is exploited in various applications, such as stents and other medical devices, where the wire can be deformed into a desired shape and then triggered to return to its original form when exposed to body temperature.

Mechanical Properties

The mechanical properties of nitinol wire, such as tensile strength, yield strength, and elongation, are crucial indicators of its performance. According to ASTM F2063, which is the standard specification for wrought nickel-titanium shape memory alloys for medical devices, the typical tensile strength of nitinol wire ranges from 1000 to 1500 MPa. This high tensile strength, combined with significant elongation capabilities, makes nitinol wire suitable for applications that require both flexibility and durability.

How Does Nitinol Wire Work?

Understanding how nitinol wire works involves exploring its unique phase transformation properties and the effects of temperature and stress on its behavior.

Phase Transformation

Nitinol's functionality is based on the phase transformation between its two main phases: austenite and martensite. The austenite phase is stable at higher temperatures, while the martensite phase is stable at lower temperatures. The transformation between these phases can be induced by temperature changes or mechanical stress.

Austenite Phase: In this phase, the atomic structure of nitinol is cubic, and the material exhibits high strength and stiffness. The austenite phase is responsible for the shape memory effect.
Martensite Phase: This phase has a more complex, twinned structure that allows the material to be easily deformed. When stress is applied, the martensite phase can reorient itself, allowing the material to bend or stretch significantly.

Temperature Effects

The shape memory effect of nitinol wire is triggered by temperature changes. When nitinol wire is deformed at a lower temperature (in the martensite phase) and then heated above its transformation temperature, it returns to its original shape as it transforms back to the austenite phase. This temperature-dependent behavior is crucial for applications like medical stents, which are deployed in a compact form and then expand to their functional shape at body temperature.

What Are the Applications of Nitinol Wire?

Nitinol wire's unique properties make it suitable for a wide range of applications, particularly in the medical field. However, its use extends beyond medical devices to various industrial and consumer applications.

Medical Devices

Nitinol wire is extensively used in medical devices due to its biocompatibility, superelasticity, and shape memory effect. Some common applications include:

Stents: Nitinol stents are used to keep blood vessels open in patients with cardiovascular diseases. These stents can be compressed into a small size for insertion and then expand to their functional size at body temperature.
Guidewires: Nitinol guidewires are used in minimally invasive surgeries to navigate through complex vascular systems. Their flexibility and superelasticity make them ideal for this purpose.
Orthodontic Archwires: In orthodontics, nitinol archwires are used to apply continuous, gentle pressure to teeth, aiding in their movement and alignment over time.

Industrial Applications

Beyond medical uses, nitinol wire finds applications in various industries due to its durability and unique properties.

Actuators: Nitinol actuators are used in robotics and aerospace applications where precise control and movement are required. The shape memory effect allows for controlled actuation based on temperature changes.
Eyeglass Frames: Nitinol's flexibility and resilience make it an excellent material for eyeglass frames that can withstand bending and twisting without breaking.
Automotive: Nitinol is used in various automotive components, such as temperature control valves, due to its ability to respond to temperature changes.

Why is ASTM F2063 Shape Memory Nitinol Titanium Flat Wire Important?

The ASTM F2063 standard is essential for ensuring the quality and consistency of nitinol materials used in medical devices. This standard specifies the requirements for the composition, mechanical properties, and testing of nitinol alloys.

Composition

The ASTM F2063 standard ensures that the nitinol alloy has a precise composition, typically around 55% nickel and 45% titanium, with allowable trace elements. This specific composition is critical for achieving the desired superelastic and shape memory properties.

Mechanical Properties

The standard also outlines the mechanical property requirements for nitinol wire, including tensile strength, yield strength, and elongation. These properties must be within specific ranges to ensure the material's performance in medical applications. For example, a high tensile strength ensures that the wire can withstand significant forces without breaking, which is crucial for stents and other implants.

Testing and Certification

ASTM F2063 mandates rigorous testing and certification processes to verify the quality and consistency of nitinol wire. This includes tests for mechanical properties, corrosion resistance, and biocompatibility. These tests are crucial for ensuring that the material meets the stringent requirements for medical devices, where patient safety is paramount.

Conclusion

Nitinol wire is an extraordinary material with unique properties that make it suitable for a wide range of applications, particularly in the medical field. Its strength, superelasticity, and shape memory effect are critical for its performance in demanding environments. Understanding how nitinol wire works, its various applications, and the importance of standards like ASTM F2063 provides valuable insights into this remarkable alloy.

References

"ASTM F2063-12: Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices and Surgical Implants," ASTM International, 2012.
Duerig, T. W., Pelton, A. R., & Stöckel, D. (1999). "An overview of nitinol medical applications," Materials Science and Engineering: A, 273-275, 149-160.
Otsuka, K., & Wayman, C. M. (1998). "Shape Memory Materials," Cambridge University Press.
"Nitinol Properties and Applications," Nitinol Devices & Components.
"Superelasticity and Shape Memory Effect in Nitinol," Journal of Materials Science.
