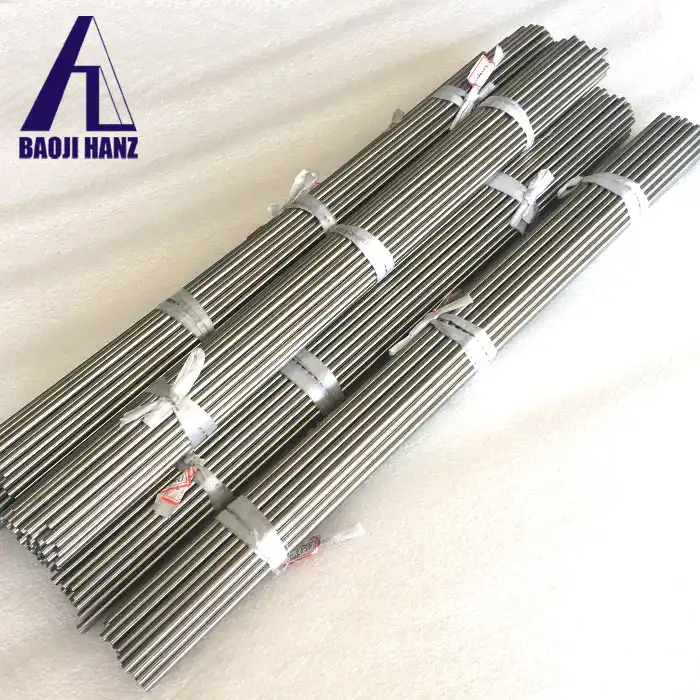

What are the advantages of nitinol rods?

Shape memory nitinol rods have revolutionized various industries due to their unique properties and versatile applications. These remarkable shape memory alloys, composed primarily of nickel and titanium, exhibit exceptional characteristics that set them apart from conventional materials. In this comprehensive exploration, we'll delve into the myriad advantages of nitinol rods, examining their shape memory effect, superelasticity, and biocompatibility. By understanding these benefits, you'll gain insight into why nitinol rods have become indispensable in fields ranging from medical devices to aerospace engineering, and how they continue to push the boundaries of material science and technological innovation.

The Shape Memory Effect of Nitinol Rods

Understanding the Shape Memory Phenomenon

The shape memory effect is a defining characteristic of nitinol rods. This remarkable property allows the material to "remember" and return to its original shape after deformation when subjected to specific temperature changes. At the molecular level, this behavior is attributed to the unique crystal structure of nitinol, which undergoes a reversible phase transformation between two stable states: austenite and martensite.

When a shape memory nitinol rod is cooled below its transformation temperature, it enters the martensite phase, becoming more pliable and easily deformed. Upon heating above this temperature, the rod transitions back to the austenite phase, recovering its original shape with impressive precision. This ability to toggle between malleable and rigid states opens up a world of possibilities for engineers and designers across various industries.

Applications Leveraging Shape Memory

The shape memory effect of nitinol rods has found numerous applications across diverse fields. In the medical industry, these rods are used to create self-expanding stents that can be compressed for minimally invasive insertion and then expand to their predetermined shape once inside the body. Orthodontic archwires made from nitinol provide consistent, gentle forces for tooth movement, revolutionizing dental care.

In aerospace engineering, nitinol rods are employed in deployable structures, such as solar panels and antennas on satellites. These components can be compactly stored during launch and automatically unfurl when exposed to the sun's heat in space. The automotive sector utilizes them in adaptive headlight systems and climate control actuators, enhancing vehicle performance and comfort.

Advantages in Energy Absorption and Damping

Another significant advantage of snitinol rods is heir exceptional energy absorption and damping capabilities. The phase transformation process inherent in the shape memory effect allows these rods to dissipate energy effectively, making them ideal for vibration control and impact mitigation applications. In seismic engineering, nitinol rods are incorporated into structural damping systems to absorb and dissipate energy during earthquakes, enhancing building safety. Similarly, in sports equipment, such as tennis rackets and golf clubs, nitinol rods can be used to reduce vibrations and improve performance. This unique energy absorption property also makes nitinol rods valuable in the development of advanced prosthetics and orthopedic implants, where they can mimic the natural shock-absorbing qualities of human bones and joints.

Superelasticity: A Game-Changing Property

The Science Behind Superelasticity

Superelasticity, also known as pseudoelasticity, is another remarkable property of shape memory nitinol rods that sets them apart from conventional materials. This characteristic allows nitinol to undergo large deformations and return to its original shape without permanent damage, even at constant temperature. The superelastic behavior is closely related to the shape memory effect but occurs in a different temperature range.

In its superelastic state, nitinol can withstand strains up to 10 times greater than those of ordinary spring steels without plastic deformation. This extraordinary elasticity is due to the stress-induced phase transformation between austenite and martensite. When stress is applied, the austenite phase transforms into martensite, allowing the material to deform. Upon removal of the stress, the martensite reverts to austenite, and the material returns to its original shape.

Durability and Fatigue Resistance

The superelastic properties of nitinol rods contribute significantly to their exceptional durability and fatigue resistance. Unlike traditional materials that may experience plastic deformation or fatigue failure under repeated stress, nitinol rods can withstand millions of loading cycles without degradation. This remarkable resilience makes them ideal for applications requiring long-term reliability and performance.

In the medical field, superelastic nitinol rods are used to create guidewires for minimally invasive surgeries, offering superior flexibility and kink resistance compared to conventional materials. The aerospace industry benefits from nitinol's fatigue resistance in the design of vibration dampers and flexible couplings, which must withstand harsh operating conditions and prolonged use.

Design Flexibility and Miniaturization

The superelasticity of nitinol rods provides engineers with unprecedented design flexibility and opportunities for miniaturization. The material's ability to undergo large deformations without permanent damage allows for the creation of complex, compact designs that would be impossible with traditional materials. This property is particularly valuable in the development of microelectromechanical systems (MEMS) and other miniature devices.

In the field of robotics, superelastic nitinol rods enable the creation of flexible, snake-like robots capable of navigating tight spaces and adapting to various environments. The consumer electronics industry leverages this property to develop durable, bendable components for smartphones and wearable devices. By harnessing the superelasticity of nitinol rods, designers can push the boundaries of product innovation and create more versatile, resilient, and compact solutions across multiple industries.

Biocompatibility and Corrosion Resistance

Nitinol's Biocompatibility Profile

One of the most significant advantages of shape memory nitinol rods, particularly in medical applications, is their exceptional biocompatibility. Nitinol's ability to coexist harmoniously with living tissues without causing adverse reactions has made it a preferred material for numerous medical devices and implants. The biocompatibility of nitinol is attributed to its stable oxide layer, primarily composed of titanium dioxide, which forms naturally on the surface and acts as a protective barrier.

This biocompatible nature allows nitinol rods to be used in long-term implantable devices such as cardiovascular stents, orthopedic implants, and dental appliances. The material's low toxicity and minimal inflammatory response in the body contribute to better patient outcomes and reduced risk of complications. Moreover, nitinol's biocompatibility extends to its interaction with blood, making it suitable for applications in contact with the bloodstream, such as vena cava filters and embolic protection devices.

Corrosion Resistance in Harsh Environments

Nitinol rods exhibit remarkable corrosion resistance, a property that enhances their durability and reliability in various applications. The protective oxide layer that forms on the surface of nitinol not only contributes to its biocompatibility but also provides excellent resistance to corrosion in diverse environments. This characteristic is particularly valuable in applications where exposure to corrosive substances or harsh conditions is unavoidable.

In marine environments, nitinol rods are utilized in underwater sensors, offshore drilling equipment, and oceanographic instruments due to their ability to withstand saltwater corrosion. The chemical processing industry benefits from nitinol's corrosion resistance in the design of valves, pumps, and other components exposed to aggressive chemicals. Even in the presence of bodily fluids, nitinol maintains its integrity, making it an ideal choice for long-term medical implants that must resist degradation over time.

Conclusion

Shape memory nitinol rods offer a unique combination of shape memory, superelasticity, biocompatibility, and corrosion resistance, making them invaluable across various industries. Their ability to adapt, withstand stress, and maintain integrity in diverse environments continues to drive innovation and improve performance in countless applications. As research progresses, the potential of nitinol rods remains boundless, promising exciting developments in materials science and engineering. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.





Properties and Characteristics of Shape Memory Nitinol Foil

Superelasticity and Shape Memory Effect

Shape memory nitinol foil exhibits two extraordinary properties that set it apart from conventional materials: superelasticity and the shape memory effect. Superelasticity allows the foil to undergo substantial deformation without permanent damage, returning to its original shape upon unloading. This property is particularly useful in applications requiring flexibility and resilience. The shape memory effect enables the foil to "remember" and return to a predetermined shape when heated above its transformation temperature. This unique characteristic opens up a world of possibilities for creating smart, responsive structures and devices.

Temperature-Dependent Behavior

The behavior of the Shape memory nitinol foil is intricately linked to temperature. At lower temperatures, the material exists in a martensite phase, which is easily deformable. As the temperature increases, it transitions to the austenite phase, triggering the shape memory effect. This temperature-dependent behavior allows for precise control over the material's properties, making it ideal for applications in thermal management and temperature-sensitive devices. The ability to fine-tune the transformation temperature through composition adjustments further enhances the versatility of the product.

Mechanical and Physical Properties

Shape memory nitinol foil boasts an impressive array of mechanical and physical properties. Its high strength-to-weight ratio makes it an excellent choice for lightweight yet durable components. The material's corrosion resistance surpasses that of many conventional alloys, ensuring longevity in harsh environments. Additionally, the ptoduct exhibits good biocompatibility, making it suitable for medical implants and devices. Its electrical and thermal conductivity properties also contribute to its utility in various applications, from sensors to actuators.

Manufacturing Processes of Shape Memory Nitinol Foil

Alloy Composition and Melting

The production of shape memory nitinol foil begins with careful control of the alloy composition. Precise amounts of nickel and titanium are combined to achieve the desired properties. The melting process typically involves vacuum induction melting or vacuum arc remelting to ensure high purity and homogeneity of the alloy. These advanced melting techniques are crucial for maintaining the consistency and quality of the final product, as even small variations in composition can significantly affect the foil's performance.

Casting and Hot Working

After melting, the nitinol alloy is cast into ingots or billets. These are then subjected to hot working processes such as forging or hot rolling to break down the as-cast structure and improve the material's properties. Hot working helps to refine the grain structure and enhance the mechanical properties of the alloy. The temperature and deformation parameters during this stage are carefully controlled to ensure optimal performance of the product.

Cold Rolling and Heat Treatment

The hot-worked material undergoes cold rolling to achieve the desired foil thickness. This process involves multiple passes through precision rollers, gradually reducing the thickness while increasing the length. Cold rolling also introduces work hardening, which affects the material's properties. Subsequent heat treatment is crucial to impart the shape memory and superelastic properties to the foil. This heat treatment, often referred to as "shape setting," involves heating the foil to a specific temperature and holding it in the desired shape before cooling. The precise temperature and duration of this process are tailored to achieve the optimal shape memory behavior for the intended application.

Applications of Shape Memory Nitinol Foil

Medical Devices and Implants

Shape memory nitinol foil has found extensive use in the medical field, revolutionizing the design of minimally invasive devices and implants. In cardiovascular applications, nitinol foil is used to create self-expanding stents that can be compressed for insertion and then expand to their predetermined shape once in place. This property allows for less invasive procedures and reduced trauma to patients. Orthodontic archwires made from nitinol foil provide constant, gentle force for tooth alignment, improving comfort and reducing treatment time. In neurosurgery, shape memory nitinol foil is utilized in aneurysm clips and guidewires, offering enhanced maneuverability and precision during delicate procedures.

Aerospace and Automotive Industries

The unique properties of the Shape memory nitinol foil make it an invaluable material in aerospace and automotive applications. In aircraft, nitinol foil is used in variable geometry chevrons for jet engines, which can adapt their shape to optimize performance and reduce noise during different flight phases. The automotive industry employs nitinol foil in actuators for climate control systems and in adaptive damping systems for improved ride comfort. The material's high fatigue resistance and ability to withstand extreme temperatures make it ideal for these demanding applications. Additionally, shape memory nitinol foil is explored for use in morphing aircraft structures and self-healing automotive components, pushing the boundaries of what's possible in vehicle design and performance.

Consumer Electronics and Robotics

Shape memory nitinol foil has made significant inroads into consumer electronics and robotics, enabling the creation of more compact and responsive devices. In smartphones and tablets, nitinol foil is used in haptic feedback mechanisms, providing tactile sensations that enhance user experience. The material's superelasticity is exploited in flexible antennas and connectors, allowing for more durable and bendable electronic devices. In robotics, shape memory nitinol foil actuators offer a lightweight alternative to traditional motors, enabling the development of more agile and energy-efficient robots. Soft robotics, in particular, benefits from the material's ability to change shape in response to electrical stimuli, opening up new possibilities for adaptive and biomimetic designs.

Conclusion

Shape memory nitinol foil has emerged as a versatile and innovative material with a wide range of applications across various industries. Its unique properties of shape memory and superelasticity have enabled the development of groundbreaking technologies in medicine, aerospace, automotive, and consumer electronics. As research continues to uncover new possibilities for this remarkable material, we can expect to see even more exciting applications in the future, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.



Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

2. Jani, J. M., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design (1980-2015), 56, 1078-1113.

4. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge university press.

5. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design, 33, 577-640.

6. Yamauchi, K., Ohkata, I., Tsuchiya, K., & Miyazaki, S. (Eds.). (2011). Shape memory and superelastic alloys: technologies and applications. Woodhead Publishing.
