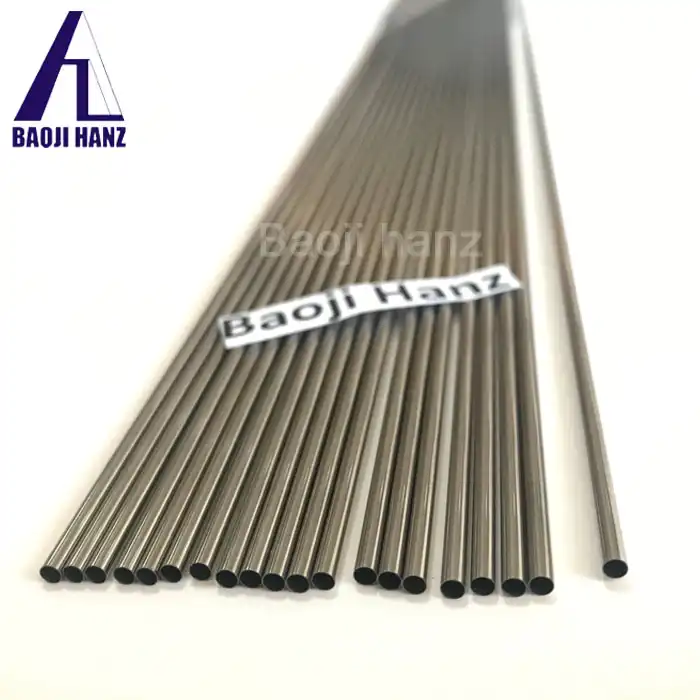

Titanium nickel tubes introduction:
Titanium nickel tubes is a tube made of nickel titanium alloy. Nitinol is a shape memory alloy that can automatically restore its own plastic deformation to its original shape at a specific temperature, its expansion rate is more than 20%, and its corrosion resistance is better than the best medical stainless steel, which is a very good functional material. In addition to the shape memory function, it also has the characteristics of wear resistance, corrosion resistance, high damping and super elasticity
Product features:
-Shape memory effect: Mention that these tubes remember their original shape even after deformation, which is very useful in many applications.
- Superelasticity: emphasizes its ability to withstand large deformation without permanent damage and to quickly recover.
- Corrosion resistance: indicates resistance to various corrosive environments to ensure long service life.
-Biocompatibility: For medical applications, emphasis is placed on the biocompatibility of nickel-titanium tubes to make them safe for use in the human body.
-Wall thickness range: 0.025-3.0mm
-Outer diameter range: 0.20-15.0mm
-MOQ:1PCS
- Good wall thickness uniformity.
-Material composition and properties comply with ASTM F2063 and GB24627 standards.
- High material purity: loose and metal inclusions ≤12.0um; The area percentage of loose non-metallic inclusions is less than 0.5%.
- Smooth surface: outer surface Ra≤0.4μm, inner surface Ra≤0.6μm.
Chemical composition of titanium nickel tubes:
| Element | Content range |
|---|---|
| Ni | 54.5 - 57.0 |
| C | 0.05 |
| Co | 0.05 |
| Cu | 0.01 |
| Cr | 0.01 |
| H | 0.005 |
| Fe | 0.05 |
| Nb | 0.025 |
| N+O | 0.05 |
| Ti | margin1 |
Actual operating Af temperature of titanium nickel tubes:
For finished tubes with an outer diameter of 0.3-3.0 mm, the actual operating recovery end temperature after the section is cut can be tested using the bending recovery method specified in ASTM F2082-15.
Mechanical properties of titanium nickel tubes:
Tensile test: ASTM F2516-18, test temperature is 22±2°C, applicable standard is ASTM F2633.
| Tensile strength (MPA) | Elongation (%) | 4% Platform stress (MPA) | 6% residual deformation (%) | Austenite transition end temperature AF (℃) |
| ≥1000 | ≥10 | ≥380 | ≤0.3 | ≤0.3 |
Surface state of titanium nickel tubes:
Inner surface: clean state, oxidation state.
External surface: oxidation state, grinding state.
Other surface requirements can be negotiated with Baoji Hanzhen Metal Materials Co., LTD
Titanium nickel tubes size and tolerance:
| Outside diameter range (mm) |
Outside diameter tolerance (mm) |
Inside diameter tolerance (mm) |
Wall thickness range (mm) |
Wall thickness tolerance (mm) |
| 0.2≤OD≤0.5 | ±0.002 | ±0.005 | 0.025≤WT≤0.12 | ±0.003 |
| 0.5≤OD≤1.0 | ±0.005 | ±0.008 | 0.025≤WT≤0.30 | ±0.005 |
| 1.0≤OD≤3.0 | ±0.01 | ±0.01 | 0.025≤WT≤0.40 | ±0.008 |
| 3.0≤OD≤6.0 | ±0.01 | ±0.015 | 0.05≤WT≤1.5 | ±0.008 |
| 6.0≤OD≤9.0 | ±0.015 | ±0.02 | 0.07≤WT≤2.0 | ±0.01 |
| 9.0≤OD≤12.0 | ±0.02 | ±0.02 | 0.1≤WT≤2.0 | ±0.01 |
| 12≤OD≤15.0 | ±0.02 | ±0.03 | 0.1≤WT≤3.0 | ±0.01 |
Titanium nickel tubes Application:
Medical field
- Bracket: titanium nickel tubes are used to make brackets. Their shape memory effects and superelasticity allow them to expand and provide support within blood vessels, helping to keep them open and improve blood flow.
- Orthodontic devices: In orthodontics, they are made into wire. The super elastic nature makes them suitable for continuous and gentle force on the teeth, gradually moving into the correct position.
Aerospace industry
- Structural components: titanium nickel tubes can be used as flexible connectors or structural components. Their ability to withstand deformation and recover helps absorb vibrations and shocks during flight.
Temperature sensing elements: Due to shape memory effects related to temperature changes, they can be used to manufacture temperature sensing elements to monitor and control temperature in aerospace systems.
Automobile industry
- Shock absorber: The superelasticity of titanium nickel tubes is used in shock absorber systems. They can effectively absorb and dissipate the energy generated by road bumps, improving the comfort and stability of the vehicle.
Sensors: Used to manufacture sensors that detect physical parameters such as pressure and temperature to help monitor the vehicle's operating condition and improve safety.
Production process of titanium nickel tube:
Quality assurance:
-- Put forward strict quality control measures to ensure the highest quality of nickel-titanium tubes.
- Reference to international quality standards.
Logistics transport mode:

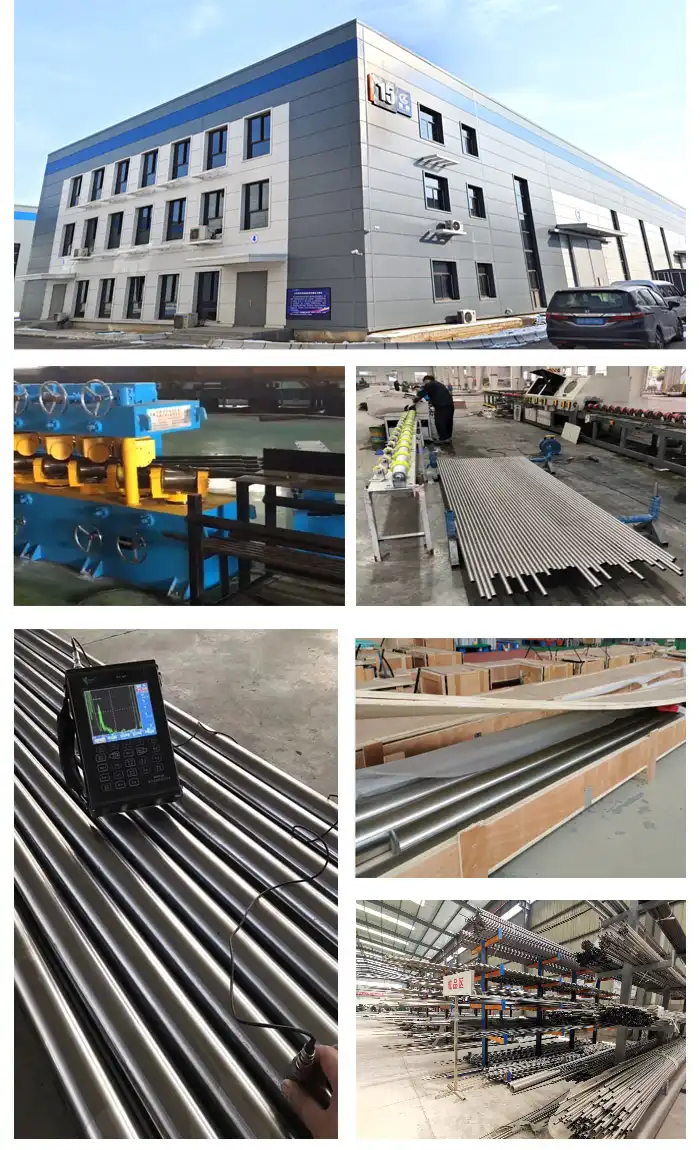

Company and equipment:
FAQ:
Q: What are the main features of nickel-titanium tubes?
A: Nickel-titanium tubes have shape memory effect, superelasticity, good corrosion resistance and biocompatibility.
Q: What are the applications of nickel-titanium tubes in the medical field?
A: They are used to make stents, orthodontic wires and other medical devices.
Q: Are nickel-titanium tubes durable?
A: Yes, they are very durable because they have excellent mechanical properties and corrosion resistance.
Q: How to know the quality of nickel-titanium tube?
A: We have strict quality control standards and can provide quality certificates.
Q: Can nickel-titanium tubes be customized?
A: Yes, we can make them according to your special requirements on size and performance.
