Product Introduction:

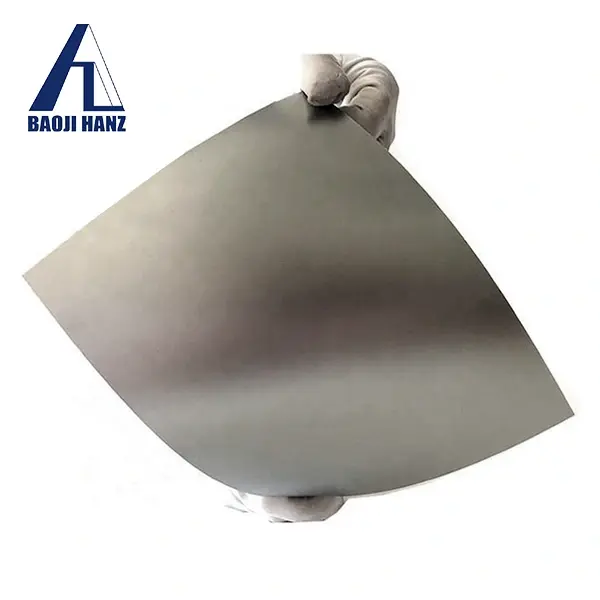

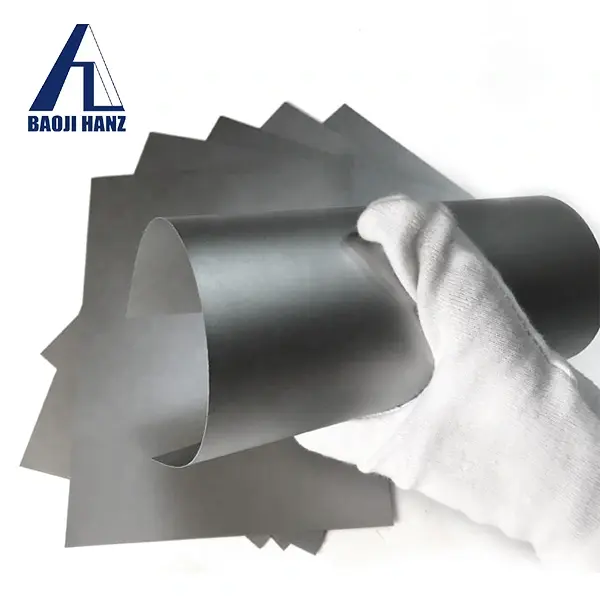

Nitinol sheets are innovative materials with remarkable shape memory properties, offering a wide array of applications in various industries. Our ASTM F2063 Shape Memory Alloy Nitinol Plate is meticulously crafted to meet stringent quality standards and deliver outstanding performance in diverse environments.
Product Details :
Crafted with precision, our products boasts exceptional elasticity and shape memory characteristics. With a unique ability to revert to its original shape upon heating, this plate finds utility in medical devices, aerospace components, and intricate mechanical systems. Its superior corrosion resistance and biocompatibility make it ideal for medical implants, while its lightweight nature enhances its usability in aerospace and automotive sectors.
Specifications
| Place of Origin | Shaanxi, China |
| Brand Name | Baoji hanz |
| Color | Bright surface |
| Materials | Nitinol alloy |
| Density | 6.45 gm/cm3 |
| Ti (Min) | 45% |
| Strength | 980 Mpa |
| Processing Service | Bending, Welding, Decoiling |
| Width | ≤200mm |
| Tensile strength | 920Mpa |
| Feature | Shape memory |
| Supply Status | Full annealed |
| The Max recovery stress | 600 MPa |
| Standard | ASTM F2063-18 |
| Certificate | ISO9001:2015 |
| Application | Medical device |
| Chemical element | Af range | Available production Line | Usage | Sample |
| Nickel 55% Titanium 45% | 0℃to 100℃ | Rod&wire,Plate&sheet,Strip&foil | Medical&Industry | On stock (various specification) |
| Nickel 55% +V +Ti | ||||
| Nickel 55% +Fe +Ti | Subzero 30℃ to -5 ℃ | Rod&wire,Plate&sheet | Industry | On stock |
| Nickel 55%+Cr +Ti | (limitedspecification) | |||
| Nickel 55% +Hf +Ti | Above 100C | Ingot | Ingot | Updating |
| Mechanical Properties | ||||
| Thickness | UTS | Elongation | Upper Plateau Stress | Active Af |
| mm | σb MPa (min.) | δ % (min) | σload MPa (min.) | ℃ |
| 0.1 ~ 0.3 | 1100 | 15 | 480 | |
| 0.3 ~ 0.6 | 920 | 15 | 440 | - 20 ~ 100 ℃ |
| 0.6 ~ 6.0 | 850 | 15 | 440 | |
| Tolerance | |
| Nominal Thickness in mm | Permissible Variation from Nominal in mm |
| 6.00 ~ 1.00 | ± 0.05 |
| 1.00 ~ 0.26 | ± 0.03 |
| 0.26 ~ 0.15 | ± 0.02 |
| 0.15 ~ 0.10 | ± 0.01 |
 |
 |
Application Areas :
Nitinol sheets are a sort of shape memory composite produced using nickel and titanium. They are known for their special capacity to get back to a foreordained shape subsequent to being twisted at specific temperatures. This makes them valuable in various applications where exact development or control is required.
One normal utilization of the product is in clinical gadgets. They have been utilized in everything from stents and dental supports to muscular inserts and catheter guide wires. Their memorable capacity and return to a particular shape can make them ideal for these sorts of utilizations, as they can be intended to meet a particular patient's requirements and afterward return to their unique shape once embedded.
Another region where the products are regularly utilized is in aviation and safeguard applications. Their capacity to go through enormous distortions without being harmed, as well as their shape memory properties, make them valuable in regions like actuators, pivots, and other moving parts. They are additionally utilized in certain kinds of radio wires and sensors.
Notwithstanding clinical and aviation applications, they have additionally tracked down use in customer items. They can be found in things, for example, eyeglass outlines, watches, and even toys. In these cases, their shape memory properties can be utilized to make novel plans and works that wouldn't be imaginable with different materials.
In general, the special properties of the products make them helpful in many applications where exact control or development is required. From clinical gadgets to aviation and then some, they have shown to be a flexible and significant material.
Features:
- Exceptional shape memory properties
- Superior corrosion resistance
- Biocompatibility
- Lightweight and durable
- Wide temperature tolerance
- Versatile applications across industries
Production Technology:
Our product is manufactured using advanced processing techniques to ensure uniformity and precision. Through meticulous control of composition and processing parameters, we guarantee consistent quality and performance in every plate.
Quality Control:
At Baoji Hanz Metal Material Co., Ltd., quality is paramount. Our stringent quality control measures encompass every stage of production, from raw material inspection to final product testing. We adhere to ASTM F2063 standards to deliver nitinol sheets of the highest caliber, meeting the demands of discerning customers worldwide.You can rely on us to buy nitinol sheet.
Manufacturing Technique:
Shipping:
FAQs:
- What is Nitinol?
Nitinol is a nickel-titanium alloy renowned for its unique shape memory and superelastic properties.
- What are the application areas of Nitinol plates?
They find utility in medical devices, aerospace components, consumer electronics, robotics, and more.
- How is the quality of your Nitinol plates ensured?
We employ rigorous quality control measures throughout the production process to deliver the product that meet ASTM F2063 standards.
Final Details:
Baoji Hanz Metal Material Co., Ltd. is a leading manufacturer and supplier of ASTM F2063 Shape Memory Alloy Nitinol Plate, equipped with a state-of-the-art factory, extensive inventory, and comprehensive certifications. For inquiries or custom orders, please contact us at baojihanz-niti@hanztech.cn to . Choose Baoji Hanz for unparalleled quality, reliability, and prompt delivery of your nickel titanium wire needs.
