Can shape memory nitinol rods be shaped or customized?

Shape memory nitinol rods have revolutionized various industries due to their unique properties, including the ability to return to a predetermined shape when subjected to specific temperature changes. This remarkable characteristic has led to numerous applications in medical devices, aerospace, and consumer products. However, a common question arises: can these rods be shaped or customized to meet specific requirements? This blog post delves into the fascinating world of nitinol rods, exploring their customization possibilities, manufacturing processes, and potential applications. We'll examine the factors that influence shaping and customization, as well as the techniques used to achieve desired configurations. We should investigate together the intricacy of this unprecedented material and its flexibility to different modern requirements.

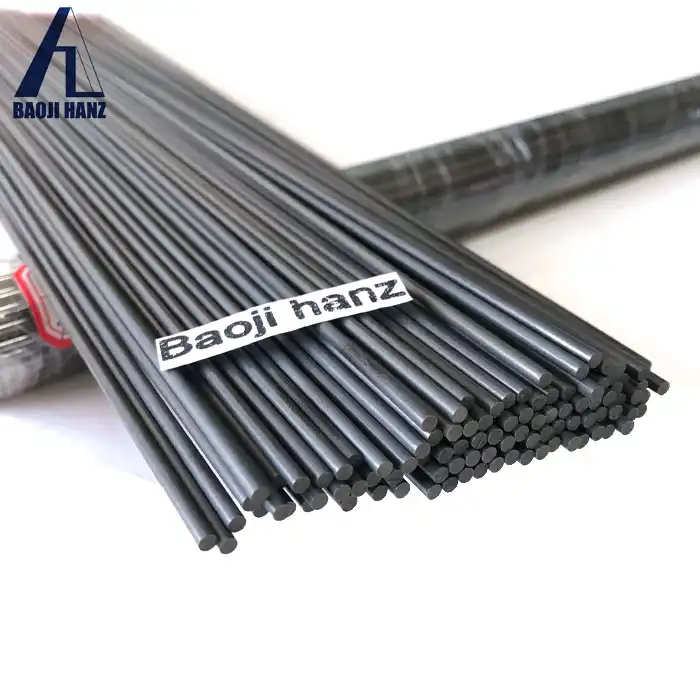

Understanding Shape Memory Nitinol Rods

The Composition and Structure of Nitinol

Shape rods are composed of a nearly equiatomic alloy of nickel and titanium. This unique composition gives nitinol its extraordinary properties, including Shape memory nitinol rod and superelasticity. The crystal structure of nitinol undergoes a reversible phase transformation between austenite and martensite, which is the basis for its shape memory effect. Understanding this underlying structure is crucial for comprehending the possibilities and limitations of shaping and customizing nitinol rods.

The Shape Memory Effect Explained

The shape memory effect in nitinol rods is a fascinating phenomenon that allows the material to "remember" and return to a predetermined shape when heated above a specific temperature. This effect occurs due to the aforementioned phase transformation between martensite and austenite. When cooled, the nitinol rod can be deformed, but upon heating, it reverts to its original shape. This unique property opens up a myriad of possibilities for customization and application-specific designs.

Superelasticity: Another Key Property

In addition to the shape memory effect, nitinol rods exhibit superelasticity, allowing them to undergo large deformations without permanent damage. This property is particularly valuable in applications requiring flexibility and resilience. Superelasticity occurs when the material is above its transformation temperature, enabling it to withstand significant stress and strain while returning to its original shape upon removal of the applied force. This characteristic further enhances the customization potential of nitinol rods.

Shaping and Customization Techniques for Nitinol Rods

Heat Treatment and Shape Setting

One of the primary methods for shaping and customizing Shape memory nitinol rods is through heat treatment and shape setting. This process involves heating the rod to a specific temperature, typically between 400°C and 550°C, while constraining it in the desired shape. The duration and temperature of the heat treatment can significantly influence the final properties of the rod. By carefully controlling these parameters, manufacturers can create nitinol rods with precise shape memory characteristics tailored to specific applications.

Cold Working and Annealing

Cold working is another technique used to shape nitinol rods. This process involves deforming the material at room temperature, which can alter its mechanical properties and shape. However, cold working alone is not sufficient to achieve the desired shape memory effect. Subsequent annealing is necessary to restore the material's shape memory properties. The combination of cold working and annealing allows for fine-tuning of the rod's mechanical behavior and shape recovery characteristics.

Precision Machining and Forming

For more intricate shapes and designs, precision machining and forming techniques can be employed. These methods include wire electrical discharge machining (EDM), laser cutting, and computer numerical control (CNC) machining. These advanced manufacturing processes enable the creation of complex geometries and precise dimensions in nitinol rods. However, care must be taken to avoid excessive heat generation during machining, which could alter the material's properties. Specialized tooling and cooling techniques are often used to maintain the integrity of the nitinol rod during these shaping processes.

Factors Influencing Customization of Shape Memory Nitinol Rods

Composition and Purity

The exact composition of the Shape memory nitinol rod alloy plays a crucial role in determining its properties and, consequently, its customization potential. Even small variations in the nickel-titanium ratio can significantly affect the transformation temperatures and mechanical behavior of the rod. Additionally, the purity of the alloy is paramount, as impurities can introduce undesirable effects and compromise the shape memory performance. Manufacturers must carefully control the composition and purity to ensure consistent and predictable behavior in customized nitinol rods.

Thermal History and Processing

The thermal history of a nitinol rod, including its manufacturing process and any subsequent heat treatments, greatly influences its final properties. The temperatures and durations of various processing steps can affect the rod's transformation temperatures, shape memory capacity, and mechanical strength. Understanding and controlling the thermal history is essential for achieving the desired customization results. Manufacturers often develop proprietary heat treatment protocols to optimize the performance of nitinol rods for specific applications.

Intended Application and Environmental Conditions

The intended application and environmental conditions in which the nitinol rod will be used are critical factors in determining the appropriate customization approach. Factors such as operating temperature range, required force output, and cyclic loading conditions must be considered when shaping and customizing the rod. For instance, a nitinol rod designed for a medical implant may require different properties than one used in an aerospace actuator. Tailoring the customization process to the specific application ensures optimal performance and reliability of the nitinol rod in its intended use.

Conclusion

Shape memory nitinol rods offer remarkable customization possibilities, enabling engineers and designers to create innovative solutions across various industries. Through careful control of composition, processing, and shaping techniques, these extraordinary materials can be tailored to meet specific application requirements. As research and manufacturing technologies continue to advance, the potential for customized nitinol rods will only grow, opening up new horizons for their use in cutting-edge applications.If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.



Properties and Characteristics of Shape Memory Nitinol Foil

Superelasticity and Shape Memory Effect

Shape memory nitinol foil exhibits two extraordinary properties that set it apart from conventional materials: superelasticity and the shape memory effect. Superelasticity allows the foil to undergo substantial deformation without permanent damage, returning to its original shape upon unloading. This property is particularly useful in applications requiring flexibility and resilience. The shape memory effect enables the foil to "remember" and return to a predetermined shape when heated above its transformation temperature. This unique characteristic opens up a world of possibilities for creating smart, responsive structures and devices.

Temperature-Dependent Behavior

The behavior of the Shape memory nitinol foil is intricately linked to temperature. At lower temperatures, the material exists in a martensite phase, which is easily deformable. As the temperature increases, it transitions to the austenite phase, triggering the shape memory effect. This temperature-dependent behavior allows for precise control over the material's properties, making it ideal for applications in thermal management and temperature-sensitive devices. The ability to fine-tune the transformation temperature through composition adjustments further enhances the versatility of the product.

Mechanical and Physical Properties

Shape memory nitinol foil boasts an impressive array of mechanical and physical properties. Its high strength-to-weight ratio makes it an excellent choice for lightweight yet durable components. The material's corrosion resistance surpasses that of many conventional alloys, ensuring longevity in harsh environments. Additionally, the ptoduct exhibits good biocompatibility, making it suitable for medical implants and devices. Its electrical and thermal conductivity properties also contribute to its utility in various applications, from sensors to actuators.

Manufacturing Processes of Shape Memory Nitinol Foil

Alloy Composition and Melting

The production of shape memory nitinol foil begins with careful control of the alloy composition. Precise amounts of nickel and titanium are combined to achieve the desired properties. The melting process typically involves vacuum induction melting or vacuum arc remelting to ensure high purity and homogeneity of the alloy. These advanced melting techniques are crucial for maintaining the consistency and quality of the final product, as even small variations in composition can significantly affect the foil's performance.

Casting and Hot Working

After melting, the nitinol alloy is cast into ingots or billets. These are then subjected to hot working processes such as forging or hot rolling to break down the as-cast structure and improve the material's properties. Hot working helps to refine the grain structure and enhance the mechanical properties of the alloy. The temperature and deformation parameters during this stage are carefully controlled to ensure optimal performance of the product.

Cold Rolling and Heat Treatment

The hot-worked material undergoes cold rolling to achieve the desired foil thickness. This process involves multiple passes through precision rollers, gradually reducing the thickness while increasing the length. Cold rolling also introduces work hardening, which affects the material's properties. Subsequent heat treatment is crucial to impart the shape memory and superelastic properties to the foil. This heat treatment, often referred to as "shape setting," involves heating the foil to a specific temperature and holding it in the desired shape before cooling. The precise temperature and duration of this process are tailored to achieve the optimal shape memory behavior for the intended application.

Applications of Shape Memory Nitinol Foil

Medical Devices and Implants

Shape memory nitinol foil has found extensive use in the medical field, revolutionizing the design of minimally invasive devices and implants. In cardiovascular applications, nitinol foil is used to create self-expanding stents that can be compressed for insertion and then expand to their predetermined shape once in place. This property allows for less invasive procedures and reduced trauma to patients. Orthodontic archwires made from nitinol foil provide constant, gentle force for tooth alignment, improving comfort and reducing treatment time. In neurosurgery, shape memory nitinol foil is utilized in aneurysm clips and guidewires, offering enhanced maneuverability and precision during delicate procedures.

Aerospace and Automotive Industries

The unique properties of the Shape memory nitinol foil make it an invaluable material in aerospace and automotive applications. In aircraft, nitinol foil is used in variable geometry chevrons for jet engines, which can adapt their shape to optimize performance and reduce noise during different flight phases. The automotive industry employs nitinol foil in actuators for climate control systems and in adaptive damping systems for improved ride comfort. The material's high fatigue resistance and ability to withstand extreme temperatures make it ideal for these demanding applications. Additionally, shape memory nitinol foil is explored for use in morphing aircraft structures and self-healing automotive components, pushing the boundaries of what's possible in vehicle design and performance.

Consumer Electronics and Robotics

Shape memory nitinol foil has made significant inroads into consumer electronics and robotics, enabling the creation of more compact and responsive devices. In smartphones and tablets, nitinol foil is used in haptic feedback mechanisms, providing tactile sensations that enhance user experience. The material's superelasticity is exploited in flexible antennas and connectors, allowing for more durable and bendable electronic devices. In robotics, shape memory nitinol foil actuators offer a lightweight alternative to traditional motors, enabling the development of more agile and energy-efficient robots. Soft robotics, in particular, benefits from the material's ability to change shape in response to electrical stimuli, opening up new possibilities for adaptive and biomimetic designs.

Conclusion

Shape memory nitinol foil has emerged as a versatile and innovative material with a wide range of applications across various industries. Its unique properties of shape memory and superelasticity have enabled the development of groundbreaking technologies in medicine, aerospace, automotive, and consumer electronics. As research continues to uncover new possibilities for this remarkable material, we can expect to see even more exciting applications in the future, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.



Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge University Press.

2. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical uses of nitinol. Materials Science Forum, 327, 63-70.

5. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.

6. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.
