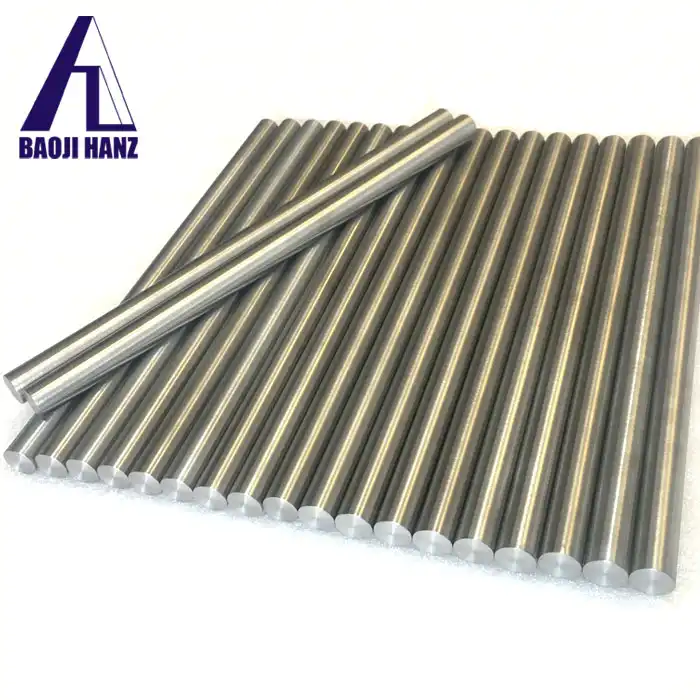

How do you work with shape memory nitinol rods?

Shape memory nitinol rods have revolutionized various industries due to their unique properties and versatile applications. These remarkable materials, composed of nickel and titanium alloys, exhibit the extraordinary ability to return to their original shape after deformation when exposed to specific temperatures. This blog delves into the intricacies of working with shape memory rods, exploring their characteristics, preparation techniques, and diverse applications. Whether you're an engineer, researcher, or simply curious about this fascinating material, this comprehensive guide will provide valuable insights into harnessing the potential of shape memory rods for innovative solutions across multiple fields.

Understanding Shape Memory Nitinol Rods

Composition and Structure

Shape memory rods are composed of a nearly equiatomic mixture of nickel and titanium. This unique composition gives rise to their extraordinary properties, including shape memory effect and superelasticity. The crystal structure of nitinol undergoes a reversible phase transformation between austenite and martensite, which is the key to its shape memory behavior. Understanding the intricacies of this composition and structure is crucial for effectively working with nitinol rods.

Shape Memory Effect

The shape memory effect is the defining characteristic of nitinol rods. When deformed at lower temperatures, the material remains in its altered shape until heated above a specific transition temperature. At this point, it "remembers" and returns to its original form. This phenomenon occurs due to the reversible martensitic transformation within the alloy's crystal structure. Grasping the nuances of this effect is essential for designing applications that leverage the shape memory properties of nitinol rods.

Superelasticity

Superelasticity is another remarkable property of shape memory nitinol rods. This characteristic allows the material to undergo large deformations and return to its original shape upon unloading, without the need for temperature changes. Superelasticity occurs when the material is above its austenite finish temperature, enabling it to withstand significant strain without permanent deformation. This property makes nitinol rods ideal for applications requiring flexibility and resilience.

Preparation and Processing of Shape Memory Nitinol Rods

Heat Treatment

Heat treatment is a crucial step in preparing shape memory rods for specific applications. The process involves carefully controlling temperature and time to optimize the material's properties. Annealing, for instance, can be used to relieve internal stresses and improve the shape memory effect. Precise heat treatment protocols are essential for tailoring the transition temperatures and mechanical properties of nitinol rods to meet specific requirements.

Cold Working

Cold working is another important technique in processing shape memory nitinol rods. This method involves deforming the material at temperatures below its recrystallization point, which can significantly alter its mechanical properties. Cold working can increase the strength and hardness of nitinol rods, but it may also affect their shape memory characteristics. Balancing these effects requires expertise and careful consideration of the intended application.

Surface Treatment

Surface treatment plays a vital role in enhancing the performance and durability of shape memory rods. Techniques such as electropolishing can improve corrosion resistance and biocompatibility, making the material suitable for medical applications. Other surface treatments, like nitriding or coating, can modify the surface properties to meet specific requirements. Proper surface treatment is crucial for optimizing the functionality and longevity of nitinol rod-based devices.

Applications and Considerations

Medical Devices

Shape memory nitinol rods have found extensive use in the medical field due to their biocompatibility and unique properties. They are commonly used in stents, guidewires, and orthodontic archwires. The superelasticity of nitinol allows for minimally invasive procedures, as devices can be compressed for insertion and then expand to their functional shape within the body. When working with nitinol rods for medical applications, strict attention must be paid to sterilization processes and biocompatibility standards to ensure patient safety.

Aerospace and Automotive Industries

In aerospace and automotive applications, shape memory rods offer innovative solutions for actuators, vibration damping, and deployable structures. Their remarkable ability to generate significant force during shape recovery makes them ideal for compact, lightweight actuators that can enhance performance and efficiency. When designing components with nitinol rods for these industries, factors such as fatigue life, temperature cycling, and environmental conditions must be carefully considered to ensure reliable performance under demanding conditions. Additionally, the integration of nitinol rods can lead to reduced maintenance needs and improved safety features, as they can self-adjust in response to varying loads and stresses. This adaptability is crucial in high-stakes environments where precision and reliability are paramount.

Consumer Electronics

The unique properties of shape memory rods have also found applications in consumer electronics, significantly enhancing device functionality and durability. They are used in devices such as mobile phone antennas, laptop hinges, and eyeglass frames. The challenge in these applications lies in miniaturization and integrating nitinol components with other materials seamlessly. Designers must consider factors such as electrical conductivity, thermal management, and compatibility with various manufacturing processes when incorporating nitinol rods into electronic devices. Additionally, the potential for adaptive designs enables devices to respond dynamically to user interactions, improving ergonomics and user experience while maintaining lightweight construction and structural integrity.

Conclusion

Working with shape memory nitinol rods opens up a world of possibilities across various industries. By understanding their unique properties, mastering preparation techniques, and considering application-specific requirements, engineers and researchers can harness the full potential of these remarkable materials. As technology advances, the applications for shape memory rods continue to expand, promising exciting innovations in medical, aerospace, automotive, and consumer electronics fields. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.





Properties and Characteristics of Shape Memory Nitinol Foil

Superelasticity and Shape Memory Effect

Shape memory nitinol foil exhibits two extraordinary properties that set it apart from conventional materials: superelasticity and the shape memory effect. Superelasticity allows the foil to undergo substantial deformation without permanent damage, returning to its original shape upon unloading. This property is particularly useful in applications requiring flexibility and resilience. The shape memory effect enables the foil to "remember" and return to a predetermined shape when heated above its transformation temperature. This unique characteristic opens up a world of possibilities for creating smart, responsive structures and devices.

Temperature-Dependent Behavior

The behavior of the Shape memory nitinol foil is intricately linked to temperature. At lower temperatures, the material exists in a martensite phase, which is easily deformable. As the temperature increases, it transitions to the austenite phase, triggering the shape memory effect. This temperature-dependent behavior allows for precise control over the material's properties, making it ideal for applications in thermal management and temperature-sensitive devices. The ability to fine-tune the transformation temperature through composition adjustments further enhances the versatility of the product.

Mechanical and Physical Properties

Shape memory nitinol foil boasts an impressive array of mechanical and physical properties. Its high strength-to-weight ratio makes it an excellent choice for lightweight yet durable components. The material's corrosion resistance surpasses that of many conventional alloys, ensuring longevity in harsh environments. Additionally, the ptoduct exhibits good biocompatibility, making it suitable for medical implants and devices. Its electrical and thermal conductivity properties also contribute to its utility in various applications, from sensors to actuators.

Manufacturing Processes of Shape Memory Nitinol Foil

Alloy Composition and Melting

The production of shape memory nitinol foil begins with careful control of the alloy composition. Precise amounts of nickel and titanium are combined to achieve the desired properties. The melting process typically involves vacuum induction melting or vacuum arc remelting to ensure high purity and homogeneity of the alloy. These advanced melting techniques are crucial for maintaining the consistency and quality of the final product, as even small variations in composition can significantly affect the foil's performance.

Casting and Hot Working

After melting, the nitinol alloy is cast into ingots or billets. These are then subjected to hot working processes such as forging or hot rolling to break down the as-cast structure and improve the material's properties. Hot working helps to refine the grain structure and enhance the mechanical properties of the alloy. The temperature and deformation parameters during this stage are carefully controlled to ensure optimal performance of the product.

Cold Rolling and Heat Treatment

The hot-worked material undergoes cold rolling to achieve the desired foil thickness. This process involves multiple passes through precision rollers, gradually reducing the thickness while increasing the length. Cold rolling also introduces work hardening, which affects the material's properties. Subsequent heat treatment is crucial to impart the shape memory and superelastic properties to the foil. This heat treatment, often referred to as "shape setting," involves heating the foil to a specific temperature and holding it in the desired shape before cooling. The precise temperature and duration of this process are tailored to achieve the optimal shape memory behavior for the intended application.

Applications of Shape Memory Nitinol Foil

Medical Devices and Implants

Shape memory nitinol foil has found extensive use in the medical field, revolutionizing the design of minimally invasive devices and implants. In cardiovascular applications, nitinol foil is used to create self-expanding stents that can be compressed for insertion and then expand to their predetermined shape once in place. This property allows for less invasive procedures and reduced trauma to patients. Orthodontic archwires made from nitinol foil provide constant, gentle force for tooth alignment, improving comfort and reducing treatment time. In neurosurgery, shape memory nitinol foil is utilized in aneurysm clips and guidewires, offering enhanced maneuverability and precision during delicate procedures.

Aerospace and Automotive Industries

The unique properties of the Shape memory nitinol foil make it an invaluable material in aerospace and automotive applications. In aircraft, nitinol foil is used in variable geometry chevrons for jet engines, which can adapt their shape to optimize performance and reduce noise during different flight phases. The automotive industry employs nitinol foil in actuators for climate control systems and in adaptive damping systems for improved ride comfort. The material's high fatigue resistance and ability to withstand extreme temperatures make it ideal for these demanding applications. Additionally, shape memory nitinol foil is explored for use in morphing aircraft structures and self-healing automotive components, pushing the boundaries of what's possible in vehicle design and performance.

Consumer Electronics and Robotics

Shape memory nitinol foil has made significant inroads into consumer electronics and robotics, enabling the creation of more compact and responsive devices. In smartphones and tablets, nitinol foil is used in haptic feedback mechanisms, providing tactile sensations that enhance user experience. The material's superelasticity is exploited in flexible antennas and connectors, allowing for more durable and bendable electronic devices. In robotics, shape memory nitinol foil actuators offer a lightweight alternative to traditional motors, enabling the development of more agile and energy-efficient robots. Soft robotics, in particular, benefits from the material's ability to change shape in response to electrical stimuli, opening up new possibilities for adaptive and biomimetic designs.

Conclusion

Shape memory nitinol foil has emerged as a versatile and innovative material with a wide range of applications across various industries. Its unique properties of shape memory and superelasticity have enabled the development of groundbreaking technologies in medicine, aerospace, automotive, and consumer electronics. As research continues to uncover new possibilities for this remarkable material, we can expect to see even more exciting applications in the future, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
