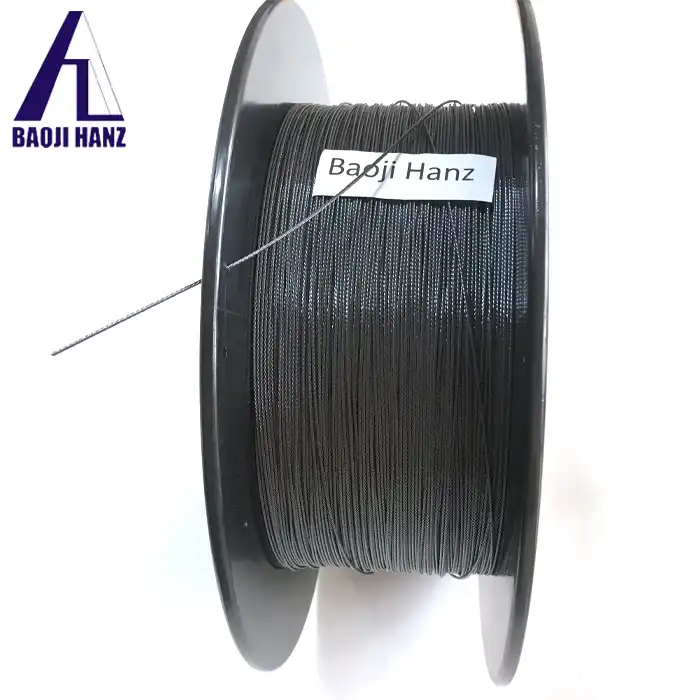

NiTi Alloy Rope(Nickel-titanium wire rope)
Product Introduction:
Standard ASTM F2063
Size Dia(0.05-7) *L
Certification ISO9001
MOQ 1 kilograms
Surface Black, Pickled, Polished
Type Straight , spool ,coil
Available Material 55%-56% Nickel and 44%-45% Titanium
Product Specifications:
| Specification | Details |
|---|---|
| Material | Nitinol alloy |
| Diameter Range | 1mm |
| Tensile Strength | High (depending on wire rope specifications) |
| Temperature Range | Wide range (specific grades available for high-temp use) |
| Corrosion Resistance | Excellent resistance to corrosion |
| MOQ | 500meters |
Product Advantages:
Shape memory and super elasticity: It can restore the preset shape at a specific temperature, automatically rebound after large deformation, and excellent fatigue resistance.
Corrosion resistance: Strong resistance to acid, alkali, seawater and other environments, suitable for harsh working conditions.
Biocompatibility: Safe, non-toxic, accessible to human tissue, suitable for medical applications.
Light weight and high strength: low density (about 6.45g/cm³), strength and toughness balance, better than traditional wire rope.
Features:
- Temperature sensitivity: the phase change temperature is controllable, and the memory effect is adjusted by heat treatment to trigger the temperature.
- Non-magnetic: non-ferromagnetic material, suitable for precision instruments, magnetic field environment.
- Smooth surface: low coefficient of friction, reduce wear, extend service life.
- Flexibility: flexible and flexible to meet the needs of complex structure wiring.
Product Application:
NiTi Alloy Rope is used in diverse sectors, including:
- Medical field: orthodontic wire, vascular stent, surgical sutures, orthopedic fixation devices.
- Industrial and intelligent equipment: automatic control valves, sensor trigger devices, robot drive components.
- Daily necessities: glasses frames, sports equipment, children's toys.
At Baoji Hanz Metal Material Co., Ltd., we offer OEM services to meet specific customer requirements. Whether you need custom diameters, tensile strengths, or specific lengths, we are equipped to deliver a product that suits your exact needs. Our technical team is available to assist you in designing a tailored solution for your business, ensuring a perfect fit for your project specifications.
Compare with ordinary silk rope:
| Feture | NiTi Alloy Rope | Stainless wire rope |
|---|---|---|
| Elastic strain | 6-8% | 0.2-0.5% |
| Corrosion resistance | excellent | Medium (plating dependent) |
| Temperature sensitivity | High (Af to be considered) | low |
| cost | High (about 10 times that of stainless steel) | low |
Packaging and logistics
Nickel-Titanium Alloy rope

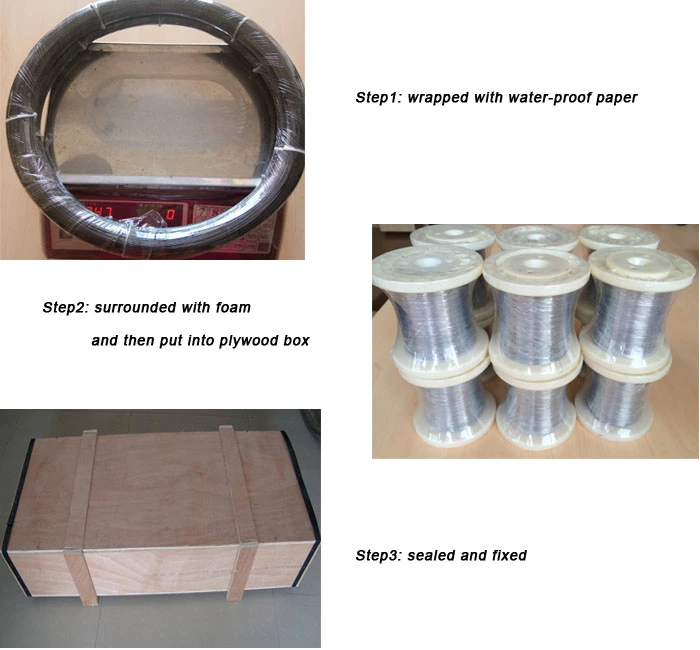

Packaging
Ni-ti Alloy Wire Rope
Nitinol wire rope (Nitinol) is a shape memory alloy rope composed of nickel and titanium, known for its unique shape memory effect and super elasticity. These characteristics make it widely used in medical, aerospace and other fields.
logistics
NiTi Alloy Rope
Niti wire rope has wide application prospect in many fields because of its unique properties. With the progress of technology, its application range will be further expanded.

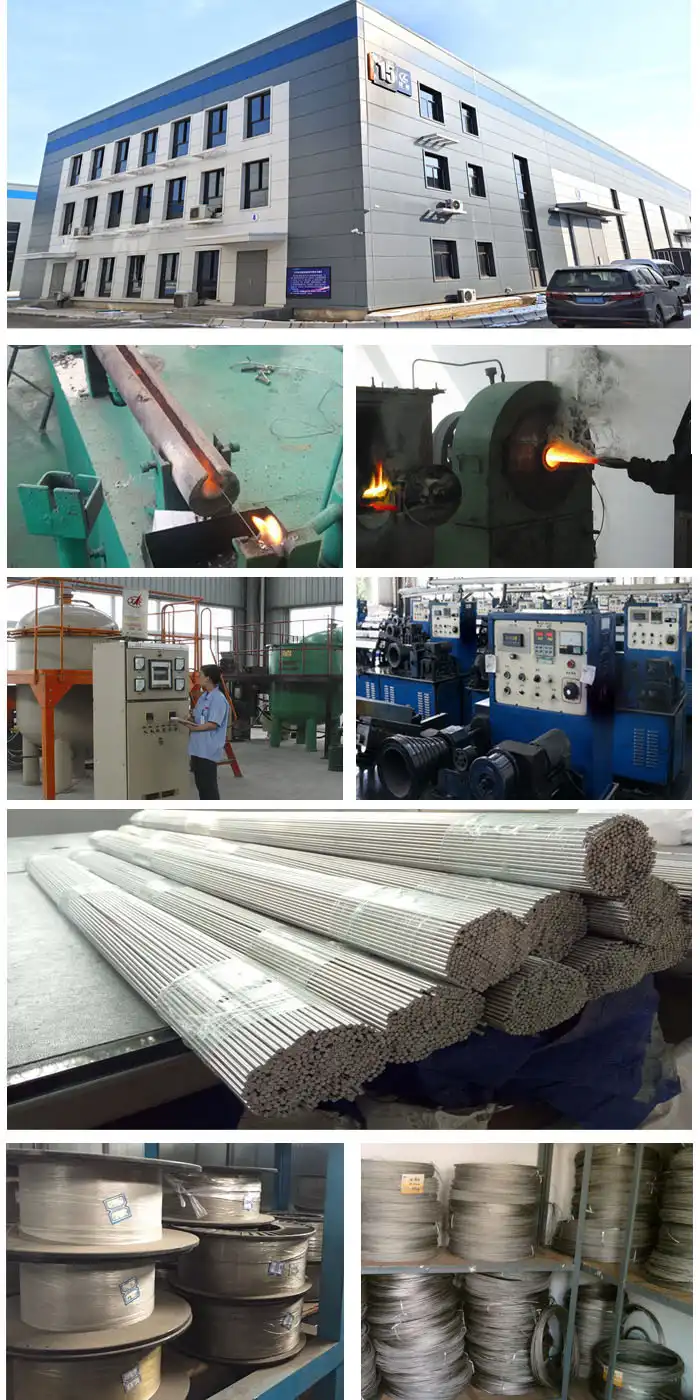

About us
Baoji Hanz Metal Material Co., Ltd.
NiTi Wire Rope
Baoji Hanz Metal Material Co., Ltd., established in 2017, It is located in China Titanium Valley non ferrous metal area of Gaoxin District in Baoji city of Shaanxi province. it is a professional manufacturer engaged in the research, development, production, sell and service of Pure Tungsten, tungsten heavy alloy, molybdenum, tantalum , niobium, nitinol and other new metal material. We are sincere to cooperate with partners to seek for common development and realize a win-win situation with mutual benefits.

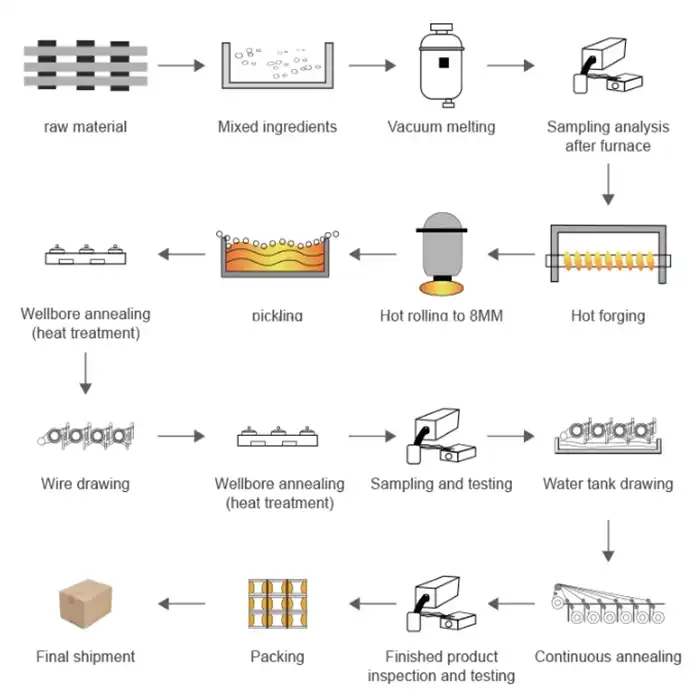

Production process:
Melting: Vacuum melting ensures uniform composition.
Hot processing: forming using hot rolling, hot drawing and other processes.
Cold processing: cold drawing, cold rolling, improve strength and accuracy.
Heat treatment: aging treatment is used to optimize performance.
Other related product catalogues
Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.
|
|
|
|
|
|
|
|
FAQ:
What is Nickel-Titanium Alloy Wire Rope made of?
It is made from a combination of nickel and titanium, known as Nitinol, which gives it unique properties like shape memory and superelasticity.
What industries can use this product?
It is widely used in aerospace, medical, robotics, marine, and other high-performance applications.
How do I place an order?
Orders can be placed via our official website, by phone, or by email. For customized orders, feel free to contact us for further details.
Contact Us:
For more information about our Nickel-Titanium Alloy Wire Rope, to request a sample, or to place an order, please don’t hesitate to contact us at:
Email: baojihanz-niti@hanztech.cn
Phone: [Insert phone number here]
Website: [Insert website URL here]
We look forward to partnering with you and providing top-quality Nickel-Titanium Alloy Wire Rope solutions that meet your business’s needs.
